BMW X2 Surround View Camera installation enhances parking safety with 360° views. Features SUPER HD cameras with WDR and automatic switching.
Enhancing Your BMW X2 with a Surround View Camera
Modern vehicles are increasingly featuring 360-degree camera systems as standard. However, if your BMW X2 didn't come equipped with this feature, an aftermarket Surround View Camera system can significantly improve parking safety. This review details the installation of a Surround View Camera and blind-spot sensors on a BMW X2 at Today's Car Seocho.
Pre-Installation Vehicle Inspection and Preparation
Installing a Surround View Camera system involves more than just mounting cameras. The process begins with a thorough inspection of the vehicle's current monitor specifications and wiring. It's crucial to verify if the existing monitor supports high-resolution video and if the LVDS cable connection is direct. For the BMW X2, compatibility with the original monitor is key. We selected a BMW-specific product capable of high-resolution output, avoiding lower-quality CVBS methods. The mounting locations for the four cameras (front, rear, left, and right) were identified, and integration with any existing rear camera was assessed.
Camera Installation: SUPER HD with WDR

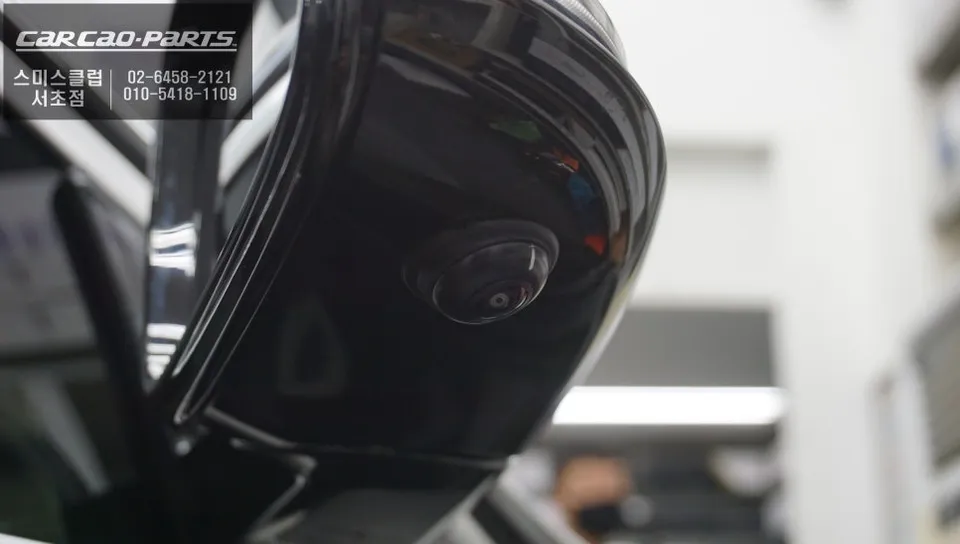

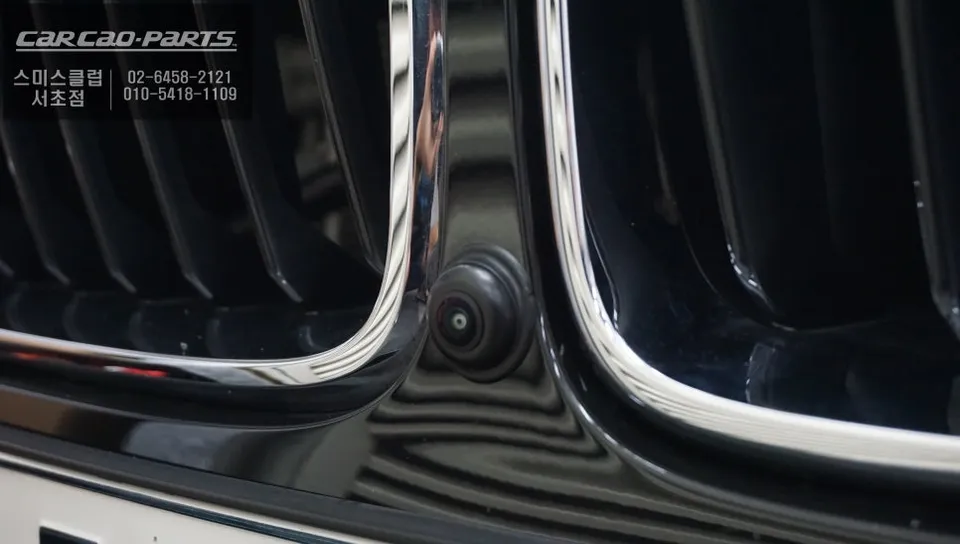

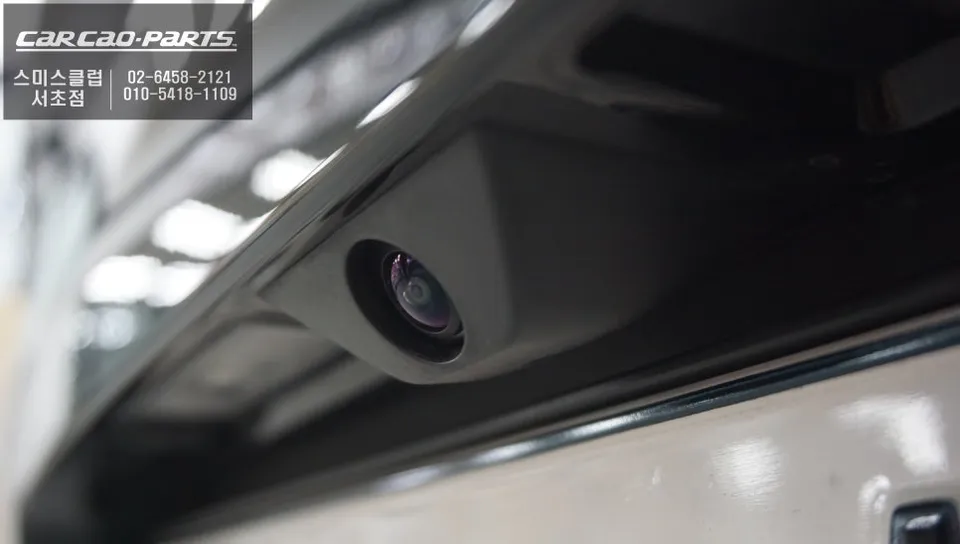

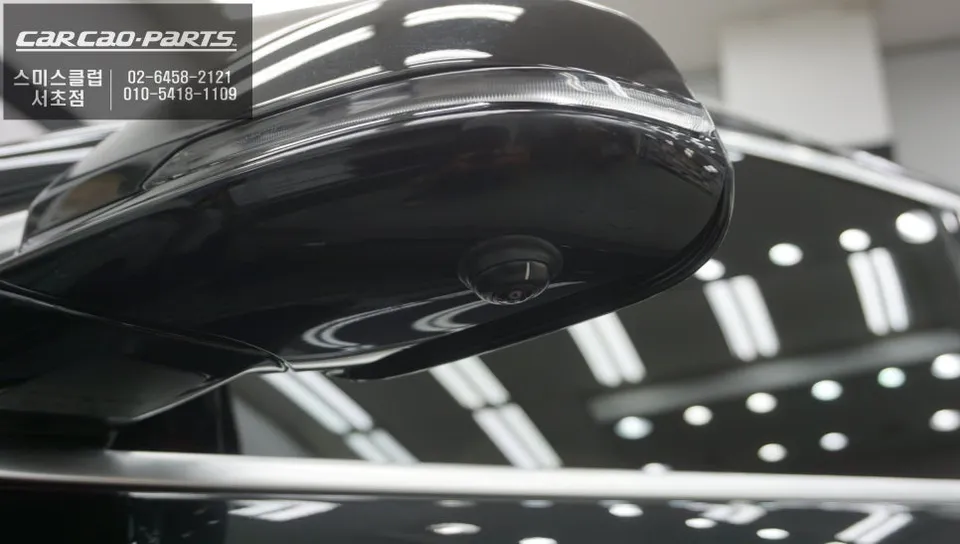

The quality of the cameras is paramount for a Surround View system. This installation utilized four SUPER HD cameras, each equipped with WDR (Wide Dynamic Range) technology. WDR ensures that subjects remain clearly visible even in challenging backlight conditions, preventing them from appearing too dark. The front camera aids in driving safety, while the rear camera is seamlessly integrated into the original mounting location, mimicking a factory installation. The side cameras are precisely installed to minimize any damage to the vehicle's exterior. Accurate camera angle adjustment is critical during this stage to ensure the top-down view is not distorted.
Pattern Application and Calibration
Once the four cameras are installed, a calibration process using a specialized pattern is performed. This step ensures each camera provides accurate positional data, which is essential for a distortion-free top-down view. Without proper calibration, the vehicle may appear misaligned in the 360-degree display.
Automatic Operation and Enhanced Safety Features
The system's usability is determined by its configuration. For this BMW X2, the automatic operation logic is as follows: when the vehicle is shifted into Reverse (R), the display automatically switches to a top-down view combined with the rear camera feed. When shifted into Drive (D), it transitions to a top-down view with the front camera feed. The system can be set to revert to the original display after a customizable idle period. A significant advantage is the ability to manually activate the Surround View at any time while driving by double-pressing the hazard light button. This feature is particularly useful when navigating narrow alleys or tight parking spaces.
Frequently Asked Questions
Q. How much does a Surround View Camera cost for a BMW X2?
The installation detailed in this review cost approximately 1.2 million Korean Won. In the US, aftermarket Surround View Camera systems for a BMW X2 typically range from $500 to $1500, depending on the brand and features.
Q. How long does a Surround View Camera last on a BMW X2?
A professionally installed Surround View Camera system is designed to last for many years, often matching the lifespan of the vehicle's other electronic components. Regular cleaning of the camera lenses and ensuring connections are secure can help maintain optimal performance.
Q. Is a Surround View Camera worth it for a BMW X2?
A Surround View Camera system is highly beneficial for BMW X2 owners who frequently navigate tight parking spaces or drive in congested urban environments. It significantly reduces the risk of minor collisions and curb damage, offering peace of mind.
Q. How is a Surround View Camera installed on a BMW X2?
Installation involves: 1. Inspecting the vehicle's monitor and wiring for compatibility. 2. Precisely mounting four SUPER HD cameras (front, rear, sides) with minimal exterior modification. 3. Calibrating the cameras using a special pattern to ensure accurate 360° imaging. 4. Configuring the system for automatic display switching and manual activation.
Q. What is the best Surround View Camera option for a BMW X2?
The best option is a system specifically designed for BMW X2, offering high-resolution SUPER HD cameras with WDR for clear visibility in all conditions. Look for seamless integration with your existing monitor and reliable automatic operation features.
