Hyundai Elantra MD Parking Sensor Upgrade: A BCM Module Case Study

This review details an OEM options upgrade for a Hyundai Elantra MD, focusing on the installation of genuine front parking sensors. The owner had already replaced the bumper with one equipped for sensors and performed some initial wiring. However, the sensors weren't functioning, leading them to seek professional help. While initially thought to be a simple wiring issue, the problem was diagnosed as a faulty BCM (Body Control Module), necessitating its replacement with a used unit to restore full functionality.

Diagnosing the Parking Sensor Issue

The core problem stemmed from the BCM module, the vehicle's central electronic brain responsible for controlling various functions, including parking sensors. Even with the correct bumper and wiring in place, a malfunctioning BCM couldn't process the signals from the new sensors. The Body Control Module (BCM) manages everything from door locks and windows to lights and wipers. In this case, the existing BCM was unable to communicate effectively with the front parking sensor system. The owner sourced a used BCM module, which was then integrated into the Elantra MD's electrical system.

Installation Process: BCM Replacement and Sensor Wiring

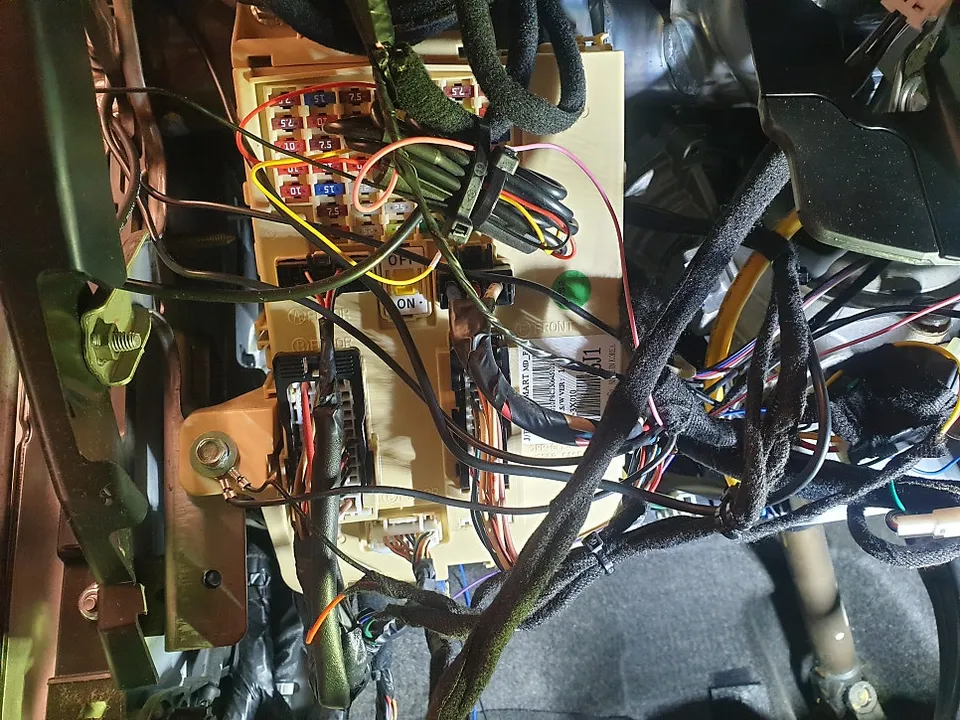

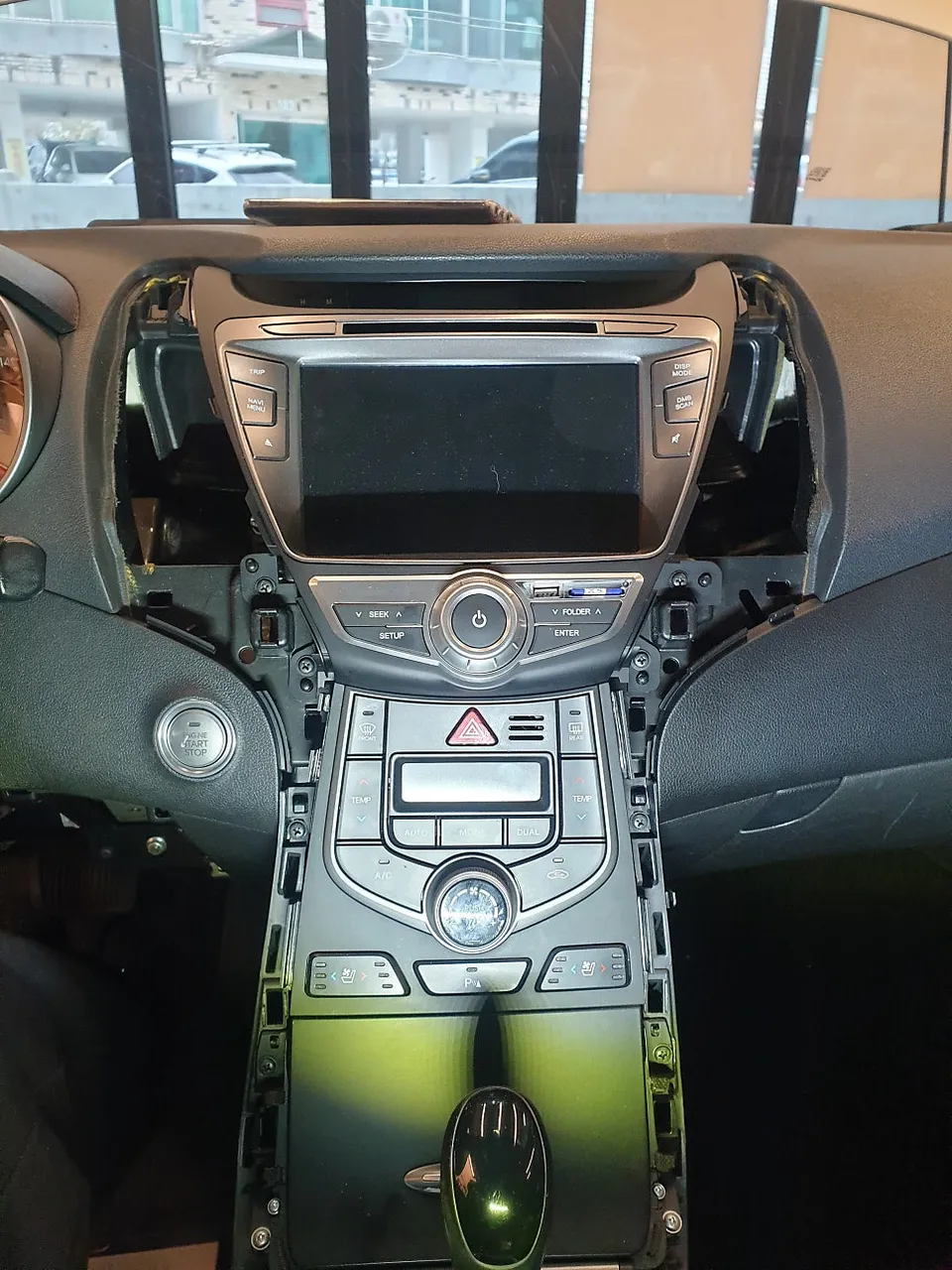

1. Careful removal of interior trim panels to access the BCM module and wiring harnesses.
2. Replacement of the existing BCM with the pre-sourced used unit.
3. Meticulous wiring of the front parking sensors according to OEM specifications, ensuring all connections are secure and correctly routed.

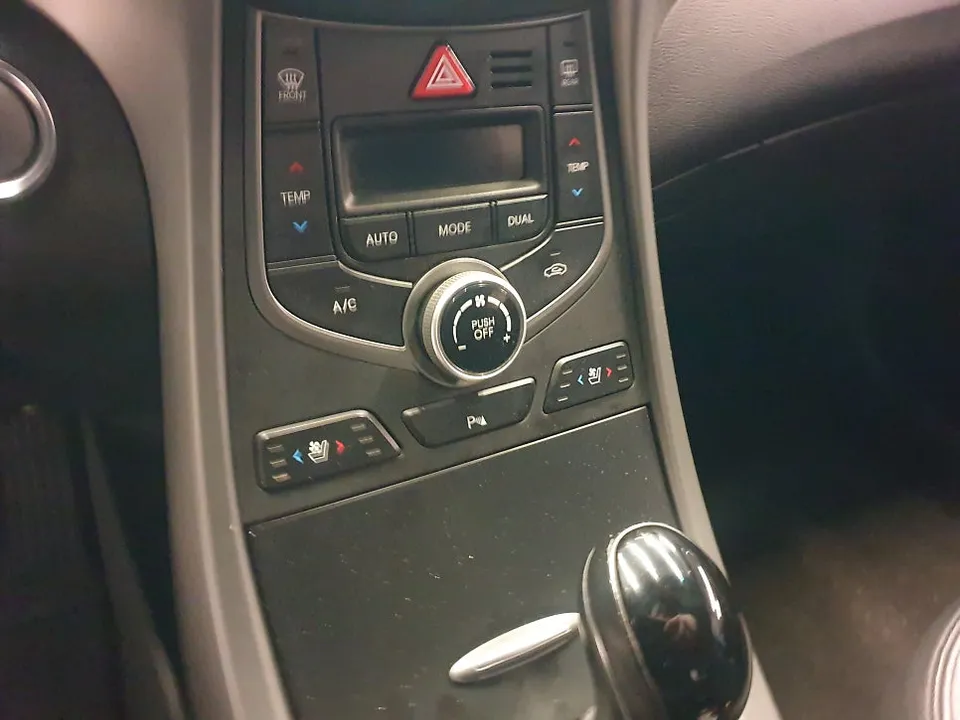

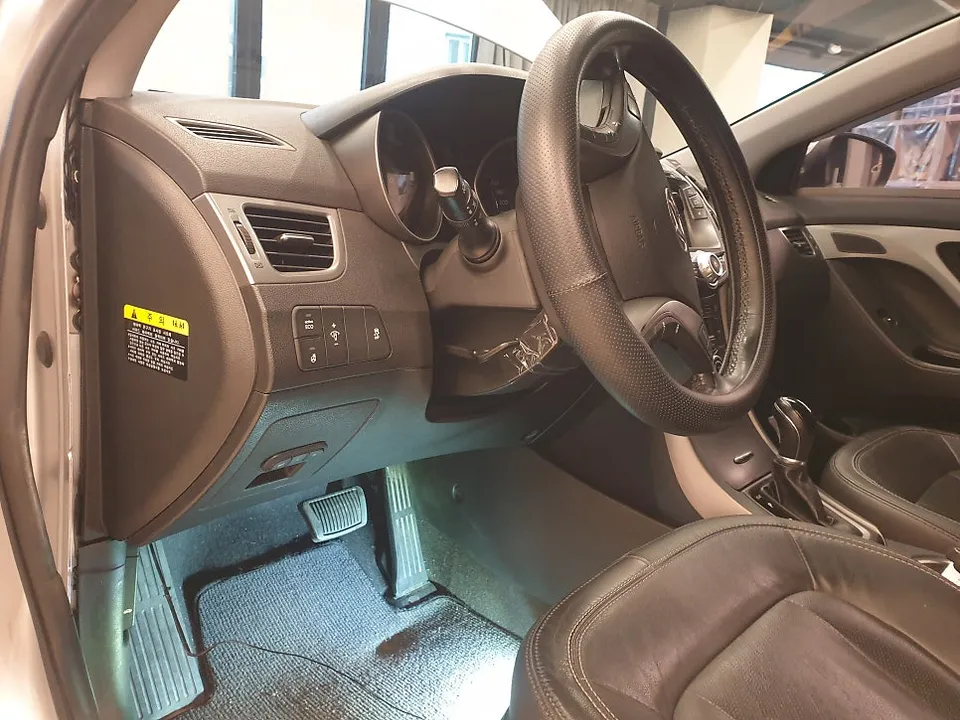

4. Integration of the parking sensor switch, ensuring it functions correctly with the new system.
5. Diagnostic checks to confirm sensor operation and system communication.

The installation involved more than just swapping parts. Precision in wiring is crucial; incorrect connections can lead to sensor malfunctions or affect other electronic systems. The process also involved addressing the parking sensor switch, which had been previously replaced during another modification. The technicians ensured seamless integration with the updated system.

Functionality Check and Dashboard Integration

After the BCM replacement and wiring were completed, diagnostic tools were used to verify the front parking sensors were operational. While the switch activated correctly, a key issue emerged: the instrument cluster did not display the parking sensor detection graphic. This was due to the specific Elantra MD model's instrument cluster not supporting this visual feature. Consequently, the system relies solely on audible alerts (beeps) to indicate proximity. The owner was informed that a full dashboard integration would require a cluster replacement, incurring additional costs and complexity. They opted to proceed with the audible alerts for now, with the option to upgrade the cluster later if desired.

Professional Terminology:

BCM (Body Control Module): An electronic control unit that manages various vehicle functions like lighting, power windows, locks, and sensor inputs.

Installation Information:

Estimated Cost: For BCM module replacement and associated wiring, expect costs in the range of ₩300,000 to ₩600,000 (approximately $220 - $440 USD), excluding the cost of the used BCM module itself. Prices vary based on vehicle model and specific parts required.

Estimated Time: Approximately 2-3 hours.

Durability: A properly functioning BCM module is designed for the lifespan of the vehicle, but its longevity can be influenced by overall vehicle condition and electrical system health.
