Hyundai Santa Fe DM Surround View Camera: A Bird's-Eye View for Safer Parking
Parking can be one of the most challenging aspects of driving, especially for larger SUVs like the Hyundai Santa Fe DM. The significant blind spots around the vehicle demand extra caution. This review details the installation of a Surround View Camera system on a Santa Fe DM, offering a 360-degree top-down perspective for real-time monitoring of the vehicle's surroundings.
Professional Installation: Camera Placement and Calibration

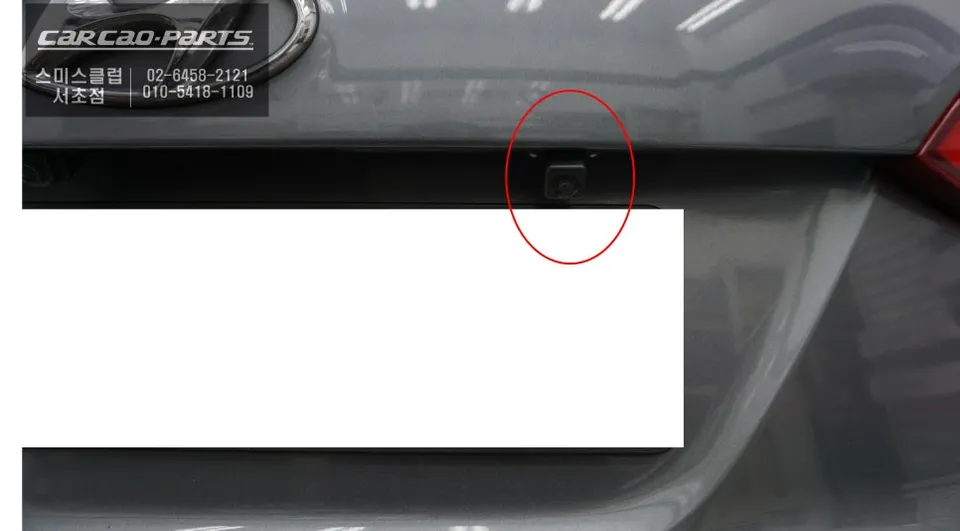

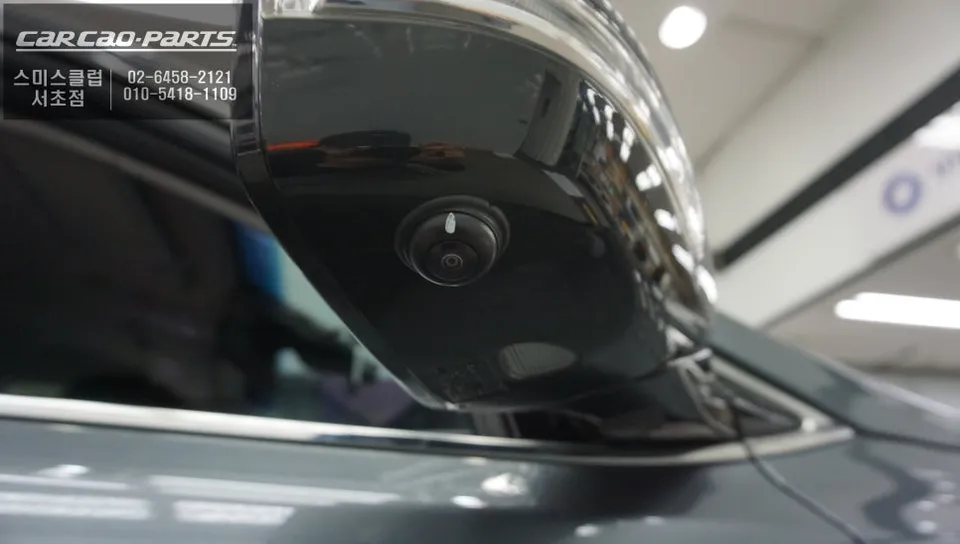

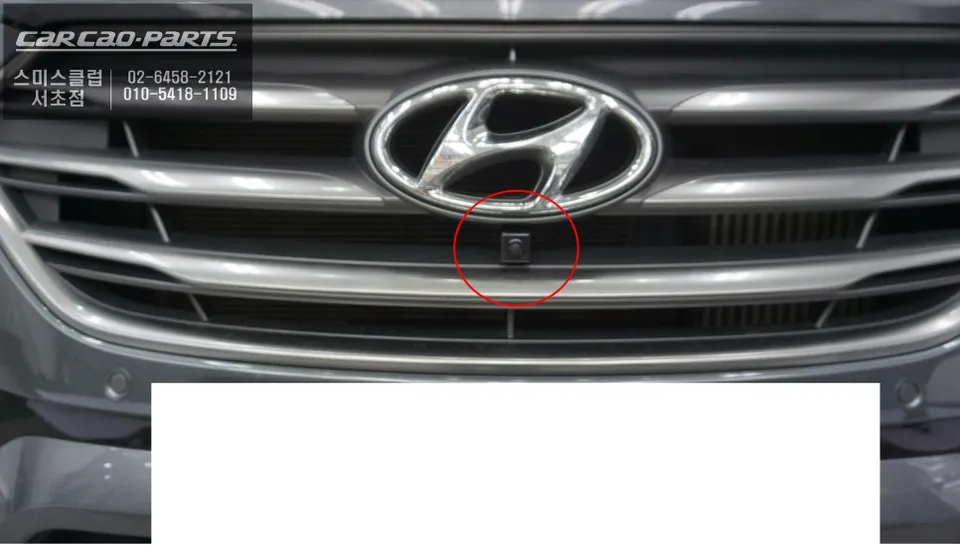

A successful Surround View Camera installation begins with a thorough understanding of the vehicle's structure. For the Santa Fe DM, this involves precisely positioning four high-definition cameras: one at the front, one at the rear, and one on each side mirror. Careful measurement and planning of the wiring routes are essential preliminary steps. The angle of each camera is critical; it must effectively cover blind spots without compromising the vehicle's aesthetics, showcasing the installer's expertise.
SUPER HD Cameras for All-Weather Visibility
The quality of the cameras is paramount for a functional Surround View system. This installation utilizes four SUPER HD cameras, delivering superior clarity compared to standard definition cameras (which typically have around 300,000 pixels). These SUPER HD cameras, boasting over 2 million pixels, capture intricate details, making even small obstacles clearly visible during parking, day or night. This enhanced visibility is crucial for safe maneuvering.

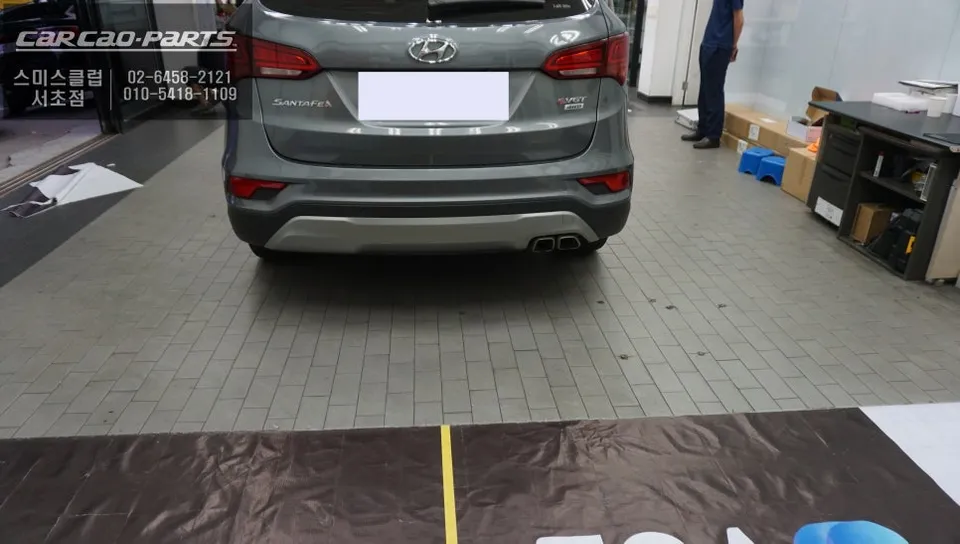

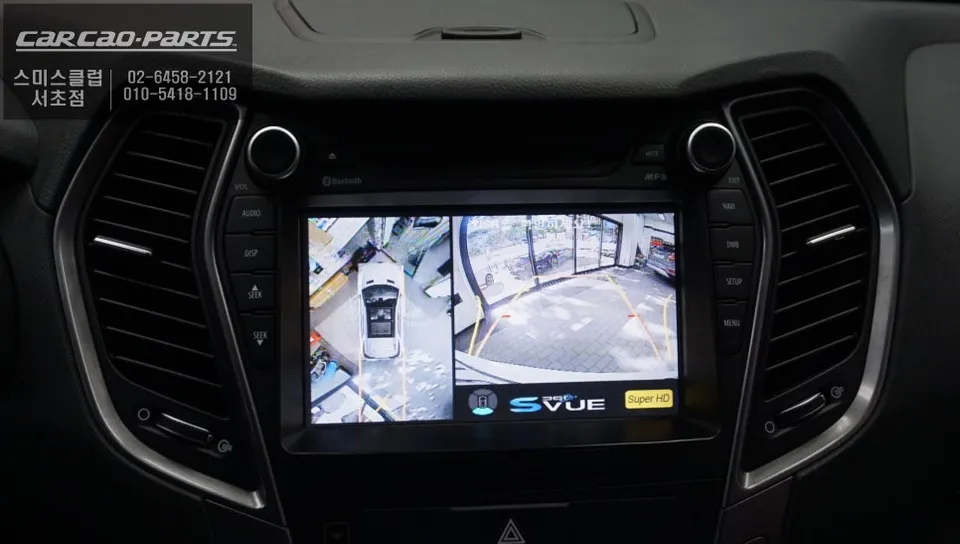

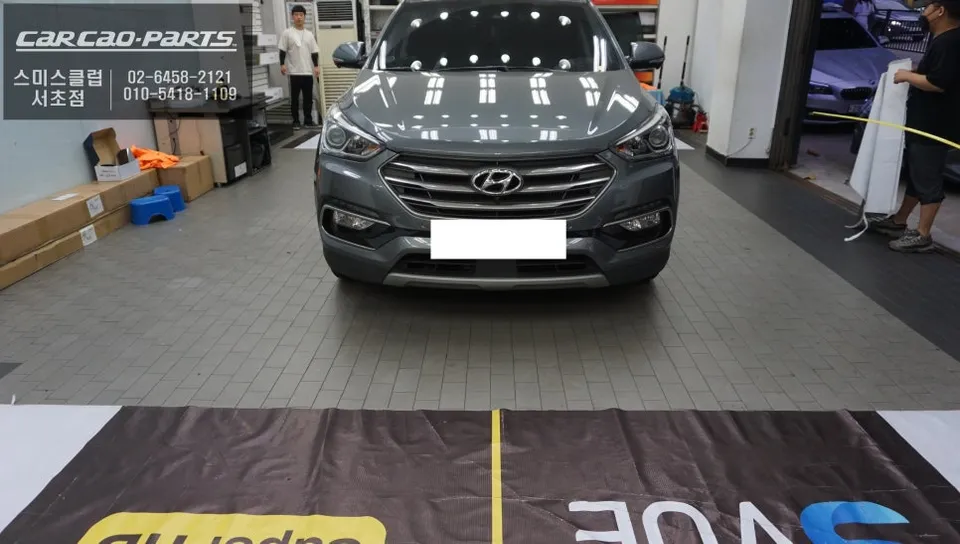

Achieving the Perfect Top-Down View: Calibration is Key
Following the physical installation of the cameras, the most critical phase is calibration. This process stitches together the feeds from the four cameras to create a seamless, top-down (sky view) image of the vehicle and its surroundings. Accurate calibration requires meticulous adjustment of each camera's angle, height, and distance, often down to the millimeter. Improper calibration can lead to a distorted view, confusing the driver rather than assisting them. This step underscores the need for experienced technicians.
Enhanced Driving Convenience with PAS Integration

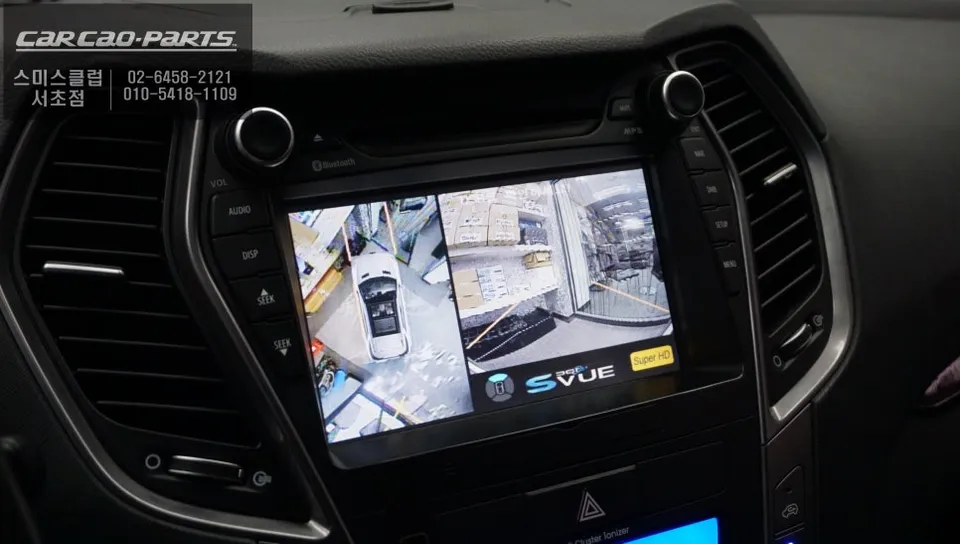

The true value of a Surround View system is amplified when integrated with the Power Assist Steering (PAS) system. As the driver turns the steering wheel, the parking lines displayed on the screen move accordingly, providing an accurate prediction of the vehicle's path. This feature significantly reduces the risk of errors in tight parking spaces. Furthermore, the system allows for easy switching between various view modes (front, rear, side, top-down) directly from the factory infotainment system, ensuring intuitive operation while driving.
Beyond Parking: Emergency Situational Awareness
The utility of the Surround View Camera extends beyond parking. In challenging situations, such as navigating narrow alleyways or when the right side of the vehicle is at risk, a quick double-press of the hazard light button instantly displays the 360-degree view. This capability can substantially mitigate accidents caused by blind spots, particularly in larger vehicles like SUVs and minivans. Drivers often report feeling more at ease in confined spaces after this upgrade.
Optional Recording: Auxiliary Battery for Parking Surveillance
To enable continuous recording while the vehicle is parked, an auxiliary battery is required. This installation included an EcoPowerPack 12C auxiliary battery, allowing all four cameras to record the surrounding environment even when the engine is off. This acts as a valuable supplement to a dashcam, providing crucial video evidence in the event of parking lot incidents or hit-and-run accidents.
Frequently Asked Questions
Q. How much does Surround View Camera cost for a Hyundai Santa Fe DM?
The cost for a Surround View Camera system on a Hyundai Santa Fe DM can range from approximately ₩1,000,000 to ₩2,500,000 in Korea, depending on the specific components and installation shop. Typical US pricing for similar aftermarket systems can range from $800 to $2,000.
Q. How long does Surround View Camera last on a Hyundai Santa Fe DM?
A professionally installed Surround View Camera system, using quality components, can last for many years, often matching the lifespan of the vehicle's other electronic systems. Regular cleaning of the camera lenses and ensuring secure connections can help maintain optimal performance.
Q. Is Surround View Camera worth it for a Hyundai Santa Fe DM?
For drivers of the Hyundai Santa Fe DM, especially those who frequently navigate tight parking spaces or are concerned about blind spots, a Surround View Camera system offers significant value by enhancing safety and reducing parking stress. The ability to see the entire vehicle perimeter provides peace of mind and can prevent costly accidents.
Q. How is Surround View Camera done on a Hyundai Santa Fe DM?
Installation involves mounting four SUPER HD cameras (front, rear, sides) onto the vehicle. The system is then calibrated to stitch these feeds into a single top-down view. Finally, it's integrated with the car's infotainment system and often linked to the steering angle for dynamic parking lines.
Q. What is the best Surround View Camera option for a Hyundai Santa Fe DM?
The best option typically involves using high-resolution SUPER HD cameras for clear day and night visibility, coupled with precise calibration for an accurate top-down view. Integration with the factory infotainment system and PAS steering assist provides the most seamless and user-friendly experience.
