Hyundai Santa Fe TM passenger window auto relay upgrade: Enhances convenience with one-touch operation. Simple installation.
Upgrade Your Hyundai Santa Fe TM: Passenger Window Auto Relay
Many Hyundai Santa Fe TM owners enjoy the convenience of one-touch auto up/down for the driver's window, but often find the passenger window requires continuous button presses. This can be a minor annoyance, especially when juggling items or needing quick adjustments while driving. Fortunately, a simple yet effective solution exists: installing a passenger window auto relay. This upgrade brings the same one-touch functionality to your Santa Fe TM's passenger side, significantly enhancing driving comfort and convenience. The process involves adding a specialized relay module that interprets a single press of the window switch as a command to fully open or close the window.
Understanding the Window Relay System

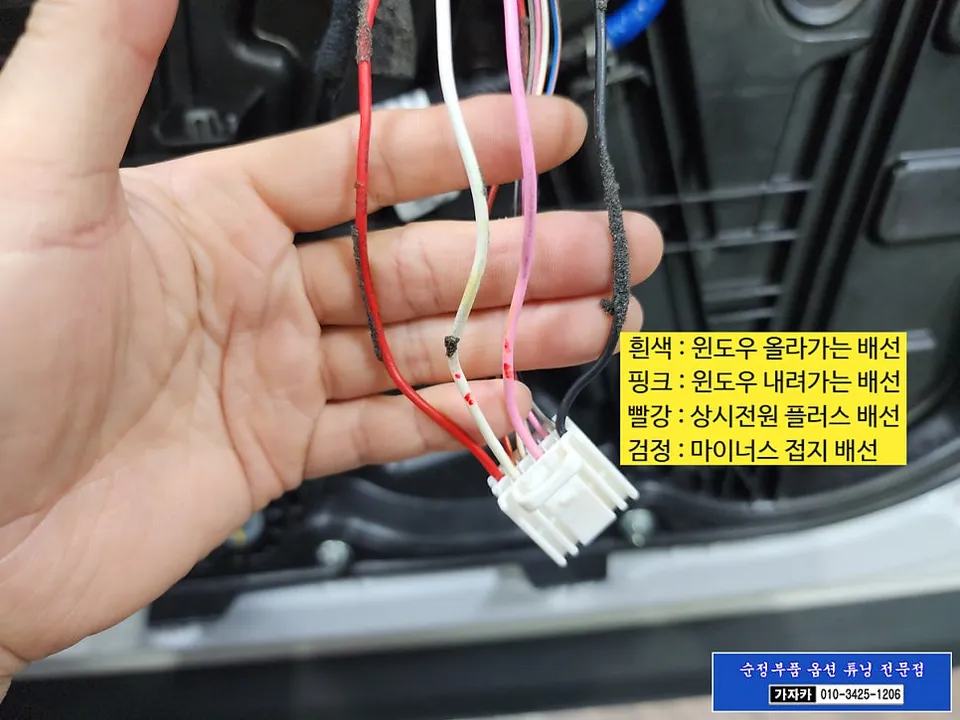

The core of this upgrade is the 'individual window relay' module, often from brands like Dowontech. This module is designed to work with your vehicle's existing power windows. It typically comes with the relay unit and a set of color-coded wires, each corresponding to a specific function: power, ground, window up, and window down. The installation requires careful connection to the vehicle's wiring harness. For the Hyundai Santa Fe TM, specific wire colors are crucial for a successful installation. Generally, the window up wire is white, and the window down wire is pink. The constant power wire is red, and the ground wire is black. The relay itself uses colored wires—typically yellow and brown for window up, white and orange for window down, black for ground, and red and blue for constant power—which need to be correctly spliced into the vehicle's corresponding wires.
Installation Process:
- Disconnect the battery to ensure safety.
- Carefully remove the door panel to access the window switch wiring harness.

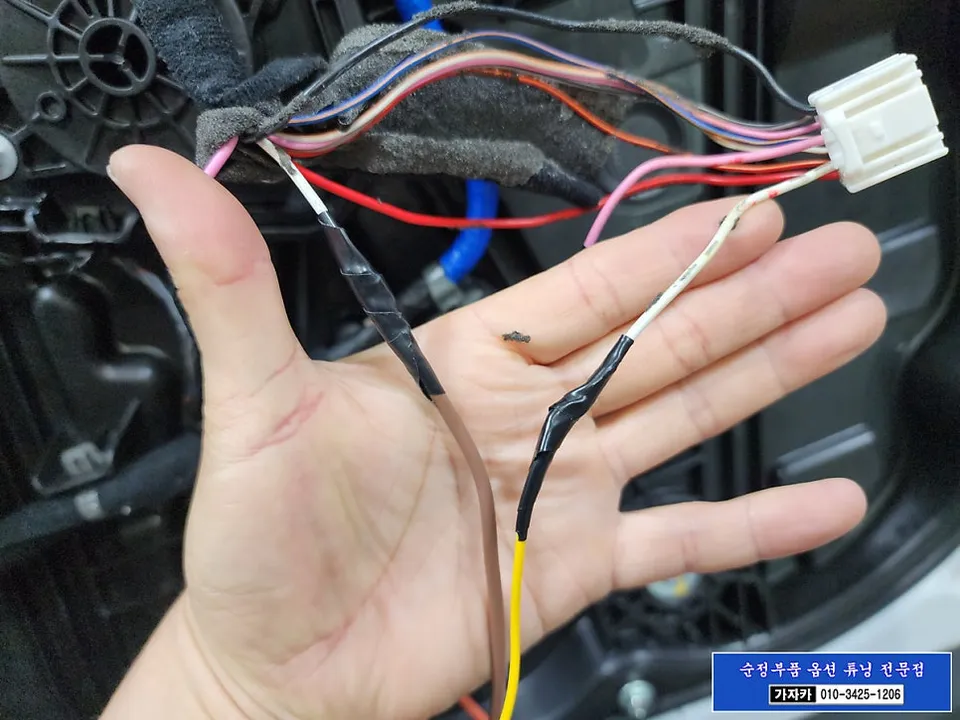

- Identify and splice the vehicle's window up, window down, power, and ground wires with the corresponding wires from the relay module. Pay close attention to connecting both the red and blue wires from the relay to the vehicle's constant power source.
- Securely connect all wires using appropriate connectors (e.g., butt connectors) and ensure proper insulation.
- Reconnect the battery and test the window operation.
- If functioning correctly, reassemble the door panel.
The importance of accurate wiring cannot be overstated. Incorrect connections, especially to the power source, can prevent the relay from functioning or potentially cause electrical issues. Once installed and tested, the passenger window will operate with the same one-touch convenience as the driver's side, making small adjustments effortless and improving the overall driving experience in your Hyundai Santa Fe TM.
Frequently Asked Questions
Q. How much does the passenger window auto relay installation cost for a Hyundai Santa Fe TM?
The cost for this specific upgrade in Korea is approximately ₩50,000 (around $35 USD). Typical US pricing for similar aftermarket auto window modules can range from $30 to $100, plus installation if not done DIY.
Q. How long does the passenger window auto relay installation take on a Hyundai Santa Fe TM?
DIY installation typically takes about 1-2 hours, depending on experience. The module itself is generally maintenance-free once installed, offering long-term convenience.
Q. Are passenger window auto relays worth adding after purchase for a Hyundai Santa Fe TM?
Yes, for drivers who frequently use the passenger window, this upgrade offers significant convenience for a relatively low cost. It adds a premium feature that enhances daily usability.
Q. How is the passenger window auto relay installed on a Hyundai Santa Fe TM?
1. Access the window switch wiring harness by removing the door panel. 2. Splice the relay's wires (power, ground, up, down) into the corresponding vehicle wires. 3. Ensure secure connections and proper insulation. 4. Test functionality before reassembling the door panel.
Q. What is the difference between dealer-installed options and aftermarket upgrades for a Hyundai Santa Fe TM?
Dealer-installed options are typically integrated during manufacturing or by the dealership and may be covered under warranty. Aftermarket upgrades, like this auto relay, are added post-purchase and offer more customization but require careful selection for compatibility and quality.
