Kia K5 LED Headlight Repair Review: Cost & Results

Kia K5 Headlight Brightness Issues Explained

Many Kia K5 owners are facing challenges with their vehicle inspections, specifically failing due to insufficient headlight brightness. This has become more common as inspection standards increasingly focus on low beam intensity. While LED lamps offer superior illumination, improper installation or component issues can lead to failing these crucial tests. This review details a case where a Kia K5 owner successfully resolved a headlight brightness problem, highlighting the importance of correct inspection and installation.

Diagnosing the Kia K5 Headlight Problem

The owner of this Kia K5 had previously installed aftermarket Bravio-certified LED lamps themselves a few years prior. While the vehicle passed inspection two years ago, it recently failed due to low light output. Upon visual inspection, the cut-off line on the driver's side headlight appeared unclear, and the beam angle seemed too high. Standard LED lamps should produce over 100,000 Candela (Cd), but this K5 was only measuring around 30,000 Cd, even with an adjusted beam angle of over 20 degrees.

To determine the root cause, the lamps were removed and tested. The current draw and illumination were normal, and while the cooling fan showed some wear, it wasn't deemed a critical issue. Testing with a known good bulb yielded the same low brightness results, confirming the lamps themselves were likely not faulty. This pointed towards an installation or alignment issue.

The Solution: Correct Bracket Installation and Alignment

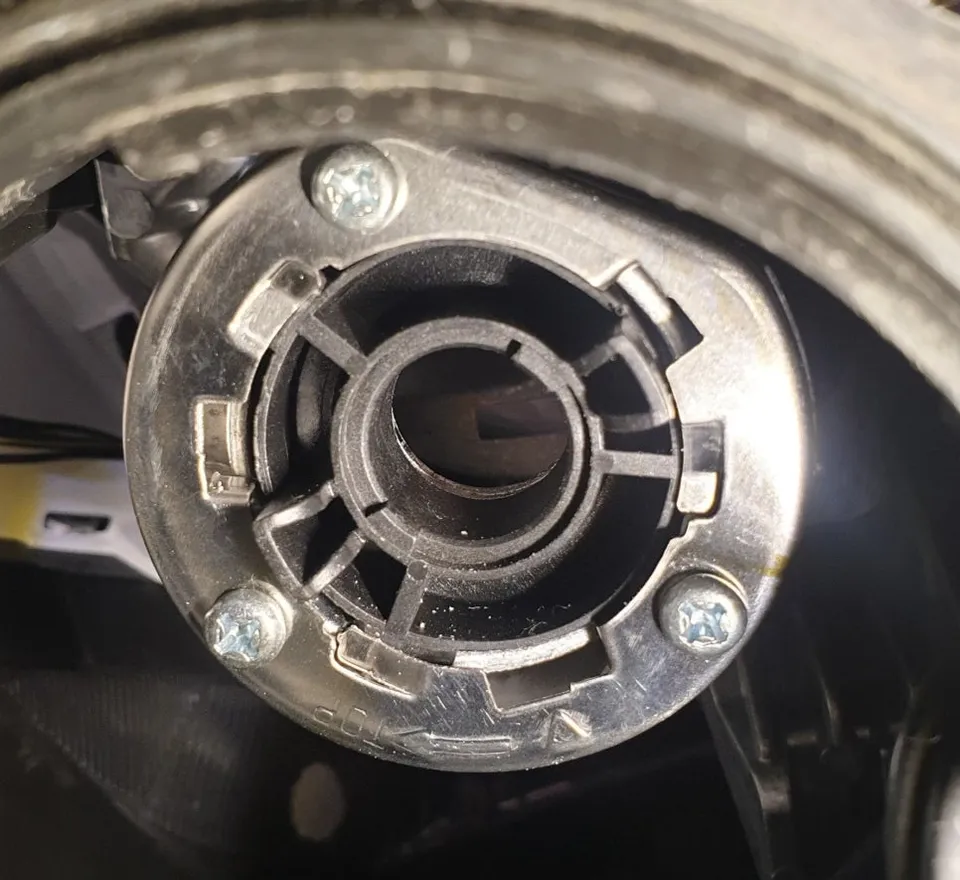

The investigation revealed the problem wasn't with the LED lamps themselves, but with the mounting brackets. Specifically, the driver's side bracket was incorrectly installed. The bracket has three locking points, and a crucial large lock needed to be seated in a precise position for the bracket to be fully secured. This incorrect seating prevented the bracket from locking properly, leading to misalignment.

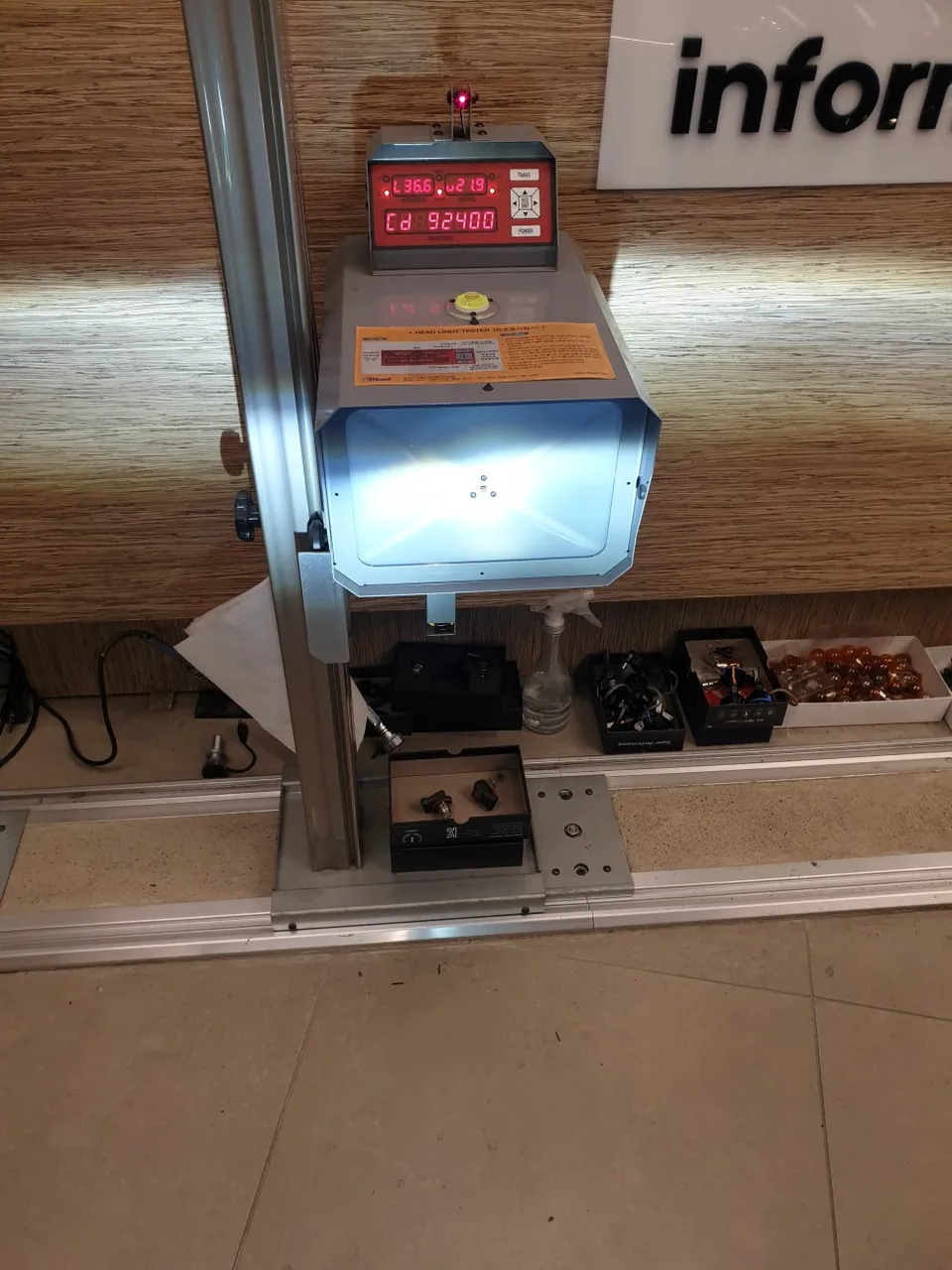

After removing the incorrectly fitted bracket and reinstalling it in the correct position, the headlight brightness dramatically improved, reaching 92,000 Cd. The cut-off line became sharp and clear, and the beam angle was adjusted to meet regulatory standards. This significant improvement, achieved simply by correcting the bracket's position, underscores the critical role of precise installation in maximizing LED lamp performance.

Further inspection of the passenger side headlight revealed the same incorrect bracket installation. The passenger side bracket was also reinstalled, and the beam angle was adjusted. With both headlights correctly installed and aligned, the Kia K5 was ready to pass its vehicle inspection.

Tips for Passing Headlight Inspections

When your vehicle fails a headlight inspection, especially with LED lamps, the first step should be to check the installation accuracy rather than assuming the lamp is faulty. Vibrations and impacts can easily misalign LED lamp brackets. Regular checks of the bracket seating and beam alignment are recommended, particularly after any work involving the headlight assembly or suspension.

Installation Process:

1. Carefully remove the headlight assembly or bulb.
2. Inspect the mounting bracket for correct seating and alignment.
3. Ensure all locking mechanisms are properly engaged.
4. Reinstall the bracket and lamp, verifying secure fitment.
5. Adjust the beam angle and cut-off line according to manufacturer specifications and local regulations.

This detailed process ensures that your LED headlights perform optimally and meet all inspection requirements, preventing costly re-tests and ensuring road safety.
