Kia K900 3D Surround View Camera Installation Review

Kia K900 Surround View Camera: Elevating Parking Safety

For Kia K900 owners, navigating tight parking spaces and avoiding unseen obstacles can be a source of anxiety. When a customer's original front camera malfunctioned, we proposed an upgrade to a sophisticated 3D Surround View Camera system. This wasn't just a repair; it was an enhancement that provides a comprehensive 360-degree bird's-eye view of the vehicle's surroundings, making parking significantly safer and more intuitive. The 3D Surround View system is a highly sought-after upgrade for those prioritizing parking security in their luxury sedans.

This advanced feature, often found as a premium option in high-end domestic vehicles, goes beyond simply adding cameras. It involves precisely positioning four cameras—front, rear, and on both side mirrors—to capture real-time video. An ECU module then masterfully stitches these feeds together to create a unified, top-down perspective. This technology is recognized as a top-tier option for premium sedans, offering unparalleled utility in large vehicles like the Kia K900.

Precision Installation for Optimal Surround View Performance

The effectiveness of any Surround View system hinges on the accurate placement of its cameras. Our installation process for the Kia K900 is meticulous:

1. Camera Removal and Preparation: We carefully remove the original front camera, ensuring the mounting area is clean and free of any residual marks to allow for precise installation of the new camera.

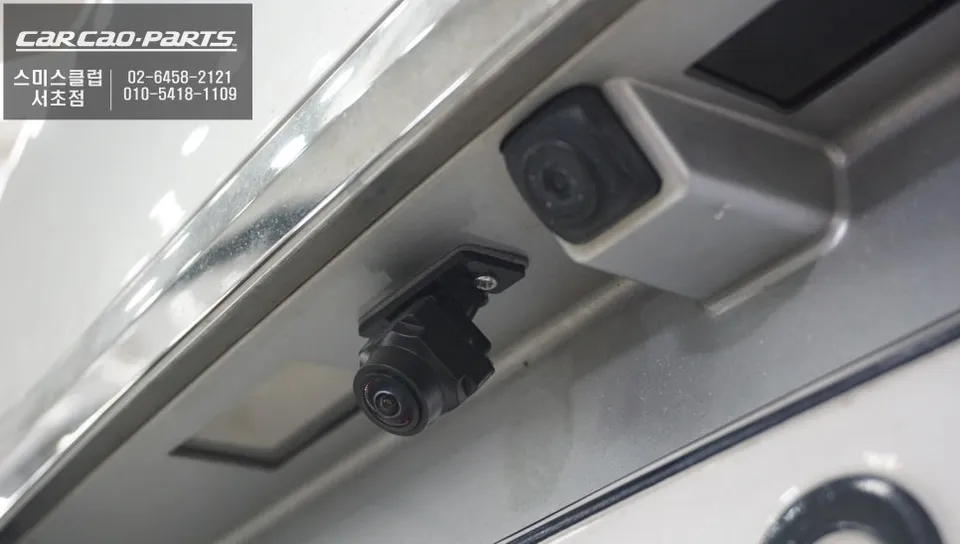

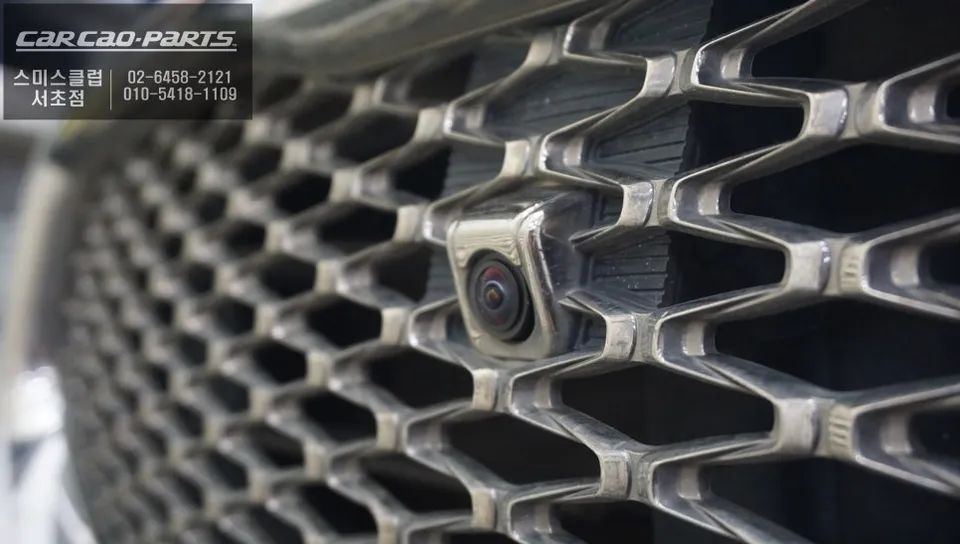

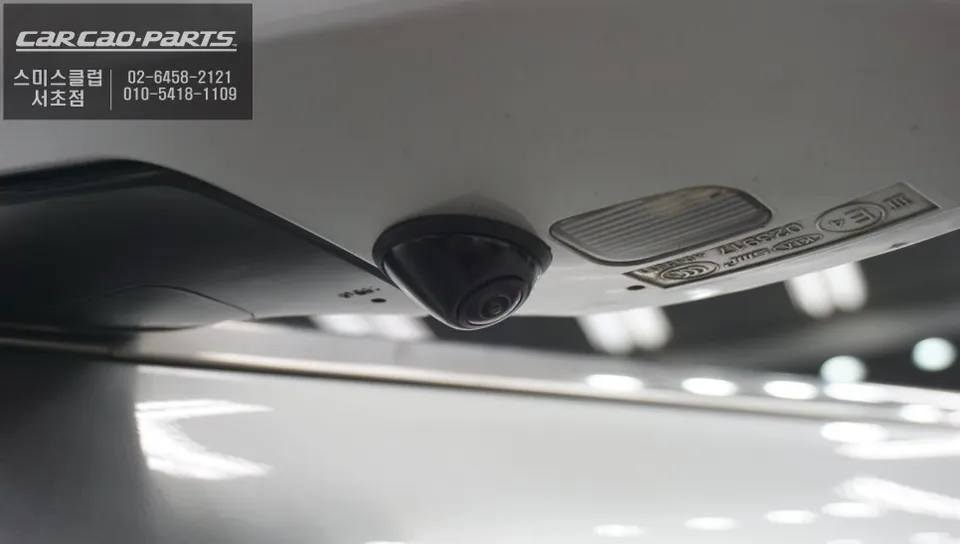

2. Strategic Camera Mounting: The front camera is mounted centrally within the bumper, the rear camera on the lower part of the trunk lid, and the side cameras are affixed to the underside of each door mirror.
3. Crucial Calibration: The most critical and complex phase is the camera calibration (or alignment) process. This involves fine-tuning the angle, field of view, and distance of each of the four cameras. Without this step, the integrated top-down view can suffer from visual glitches, such as image breaks or distortions. We use specialized patterns placed around the vehicle to ensure the intersection points of each camera's view align perfectly, guaranteeing a seamless panoramic display.

Kia K900 Surround View with QDIS Monitor: The Ultimate Combination

A notable aspect of this installation was the decision to add a separate external monitor rather than solely relying on the factory navigation screen. While integration with the OEM navigation is possible, many Kia K900 owners prefer the clarity and detail offered by a dedicated high-resolution display.

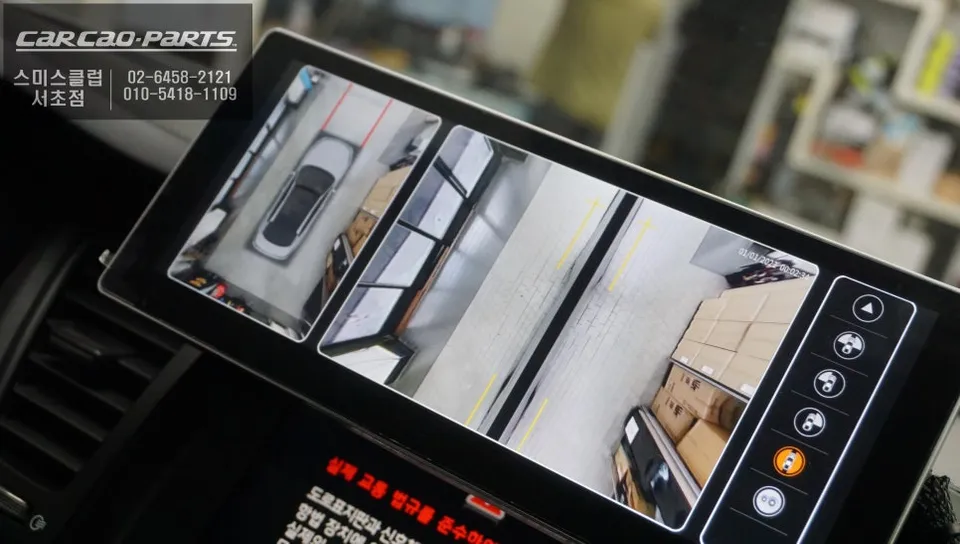

We selected the QDIS 10.25-inch Wide Monitor, a product known for its quality. Its advantages include:

• High Resolution: 720P resolution minimizes video noise for a clearer image.
• Optimal Viewing Size: The 10.25-inch wide screen is large enough for clear visibility without obstructing the driver's view.
• Stable Connectivity: It ensures reliable communication with the 3D Surround View ECU via UART.
• User-Friendly Control: Supports touch control and includes a Bluetooth jog dial remote for convenient operation.

For the Kia K900, we custom-fabricated a bracket to mount the monitor on the center dashboard. Our priority was ensuring it wouldn't impede the driver's line of sight while operating the vehicle. Large monitors can sometimes be positioned too high, leading to obstruction by the steering wheel or dashboard edge. Our tailored bracket optimizes the monitor's height and angle. Communication between the monitor and the Surround View ECU is handled via UART (serial communication), which offers lower latency and superior signal stability compared to wireless methods, effectively preventing video interruptions during critical parking maneuvers. The wireless jog dial connects via Bluetooth, allowing flexible placement for driver convenience.

Mastering the 3D Surround View Modes

The Kia K900's 3D Surround View system offers various viewing modes designed to assist the driver in different parking scenarios. These modes can be cycled through using the monitor's controls or the provided remote, allowing drivers to select the perspective that best suits their immediate needs, whether it's a tight parallel park or maneuvering into a confined garage space.
