Mercedes-Benz E-Class W212 Surround View Camera Upgrade Review
Service Price
$approx. $1,500+
Estimated price · Actual price may vary by shop
Mercedes-Benz E-Class W212 Surround View Camera upgrade with a 10.25-inch HD monitor. Enhances safety and modernizes infotainment.
Upgrade Your Mercedes-Benz E-Class W212 Infotainment System
Is your Mercedes-Benz E-Class W212's original infotainment system showing its age? Over time, factory screens can become dull, lose touch responsiveness, or even develop issues like blackouts and whiteouts, diminishing the premium feel of your vehicle. This review details an upgrade to a 10.25-inch high-definition monitor combined with a 3D Surround View Camera system, a popular solution for E-Class owners seeking to revitalize their car's technology.
10.25-Inch HD Monitor and Android Integration

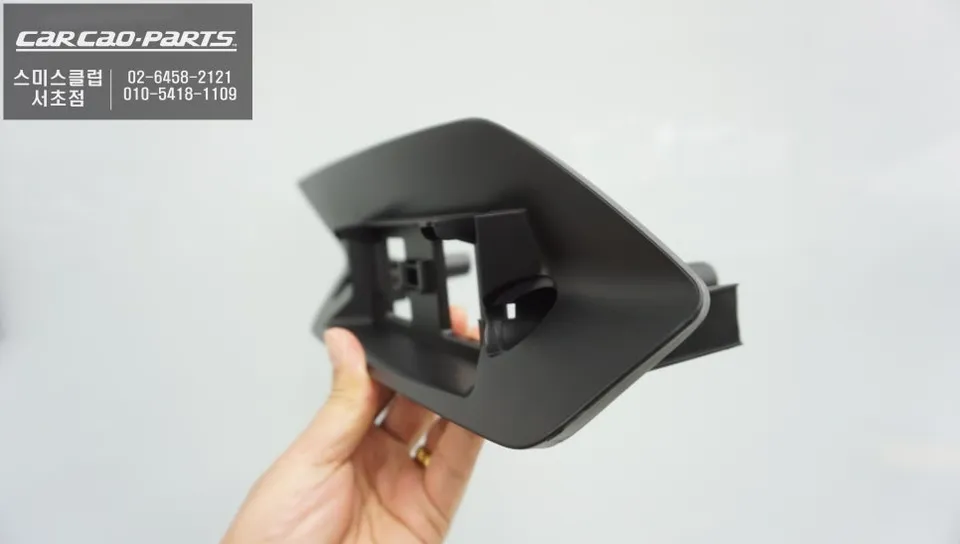

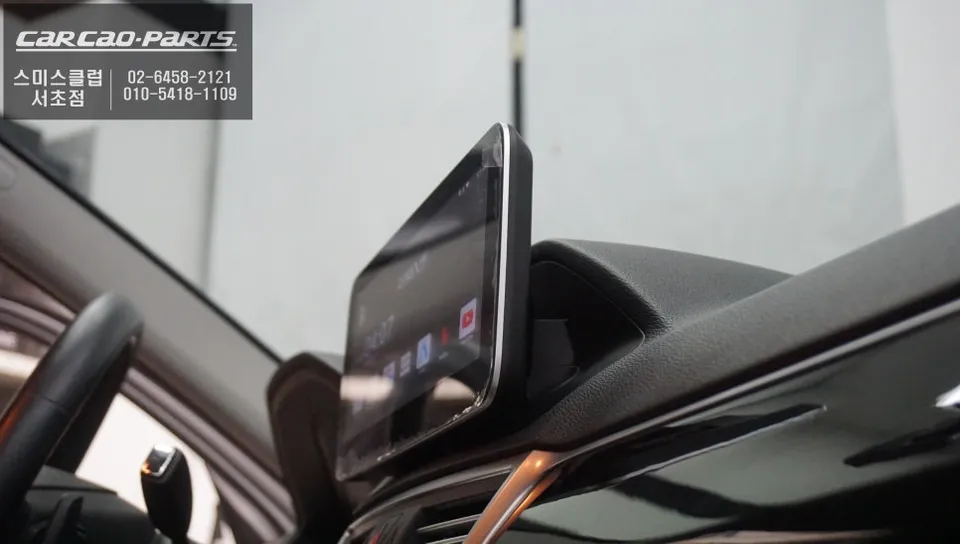

The upgrade replaces the stock monitor with a 10.25-inch Q-DIS display, featuring a 1280P AHD port for superior clarity. This Korean-made unit supports touch control and integrates seamlessly with the E-Class interior using a custom-fit bezel, maintaining an OEM look. To overcome compatibility issues with the original navigation system (like Genie Map), an Android set-top box is installed. The Q-ROIX set-top box runs Android 8.1 with a Hexa-core CPU, offering robust performance and pre-installed Atlant V5 navigation. It allows for app downloads, transforming your car's system into a versatile entertainment and navigation hub.
Switching between the original Mercedes-Benz interface and the Q-ROIX system is as simple as pressing the 'Return' button for two seconds. The Atlant V5 navigation is known for its speed and responsiveness, providing a smooth user experience. Beyond navigation, the system supports various map applications like T-Map and Kakao Map, as well as web browsing. With Wi-Fi connectivity, you can stream content from YouTube and Netflix, and the Picture-in-Picture (PIP) function allows for simultaneous viewing of two applications, such as navigation and a video stream.
3D Surround View Camera System for Enhanced Safety
The addition of a 3D Surround View Camera system significantly enhances driving safety by providing a 360-degree view of the vehicle's surroundings. This installation involves mounting four high-definition AHD cameras (front, rear, left, and right). After installation, a specialized calibration process using floor patterns and auto-calibration software creates a seamless, top-down composite view. This effectively eliminates blind spots, making parking and maneuvering in tight spaces much easier and safer.
Installation Process:
- Camera Installation: Four AHD cameras are precisely mounted on the front, rear, and sides of the vehicle.
- Calibration: A calibration pattern is laid on the ground, and the system undergoes auto-calibration to stitch the camera feeds together accurately.
- System Integration: The cameras are connected to the control unit, which integrates with the vehicle's infotainment system.
- Testing: The system is tested in various gear selections (R, D) and manual activation scenarios to ensure proper function.
The Surround View system activates automatically when shifting into reverse (displaying top-down and rear view) or drive (displaying top-down and front view). The display reverts to the original system after a set period. For immediate situational awareness, the surround view can be manually activated at any time by pressing the hazard light button or using a dedicated rotary dial, providing crucial views of blind spots while driving.
Frequently Asked Questions
Q. How much does a Surround View Camera upgrade cost for a Mercedes-Benz E-Class W212?
The specific cost for this upgrade in Korean Won was not detailed in the original context, but similar comprehensive upgrades in the US typically range from $1,500 to $3,000, depending on the components and installation complexity.
Q. How long does a Surround View Camera system typically last on a Mercedes-Benz E-Class W212?
A professionally installed Surround View Camera system is designed to last for many years, often matching the lifespan of the vehicle's other electronic components. Regular cleaning of the camera lenses is recommended to maintain optimal performance.
Q. Is a Surround View Camera upgrade worth it for a Mercedes-Benz E-Class W212?
A Surround View Camera system is highly beneficial for drivers who frequently navigate tight parking spaces or want to significantly reduce blind spots. It offers a substantial improvement in safety and parking convenience, making it a valuable upgrade for many owners.
Q. How is the Surround View Camera system installed on a Mercedes-Benz E-Class W212?
Installation involves mounting four high-definition AHD cameras around the vehicle (front, rear, sides). These cameras are then connected to a control unit. A crucial step is the auto-calibration process using floor patterns to create a seamless 360-degree top-down view, which is then integrated into the car's infotainment display.
Q. What is the best Surround View Camera option for a Mercedes-Benz E-Class W212?
The reviewed setup, featuring a 10.25-inch Q-DIS HD monitor and a Q-ROIX Android set-top box with 3D Surround View cameras, offers a comprehensive upgrade. This combination provides superior visual clarity, modern infotainment features, and enhanced safety through the 360-degree camera view.
