Porsche Macan 3D Surround View Camera Installation Review
Service Price
$approx. $1,500+
Estimated price · Actual price may vary by shop
Porsche Macan 3D Surround View Camera installation enhances visibility and safety. Seamless touch integration.
Why Your Porsche Macan Needs a 3D Surround View Camera
The Porsche Macan, with its sporty design and broad hood, often presents limited visibility for the driver, especially in blind spots on the sides and rear. Even for a premium German SUV, the higher body line can make it difficult for low-angle sensors to detect obstacles. This is where a high-quality 3D Surround View camera system significantly boosts safety. Macan owners frequently seek this feature for easier parking and low-speed maneuvering precisely because of these visibility challenges.
The Macan, particularly models from 2017 onwards, typically features a touch-sensitive factory monitor, which offers excellent compatibility with surround view camera signals. However, achieving high-definition video output relies heavily on precise camera placement, considering the side mirror structure, bumper angles, and wiring routes during installation.
The Key to Macan Surround View: Camera Placement

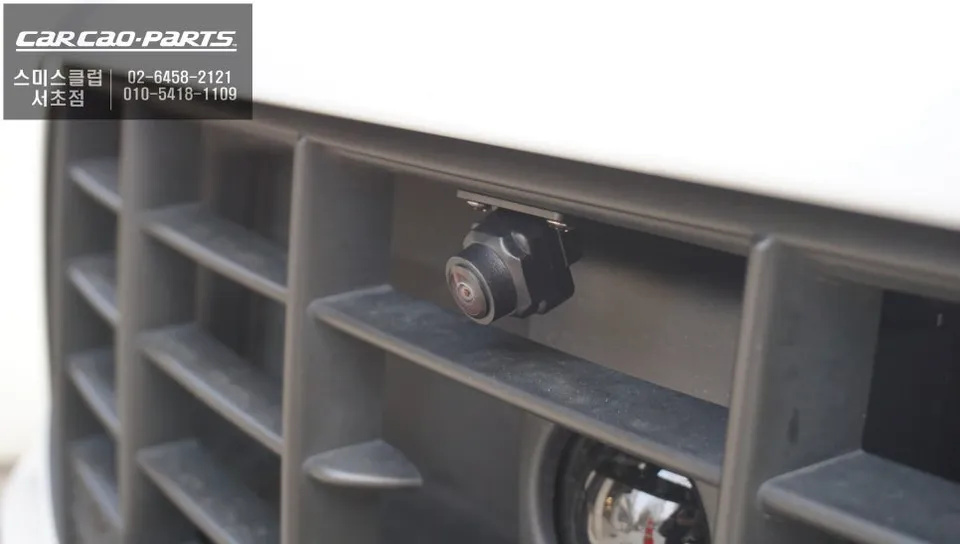

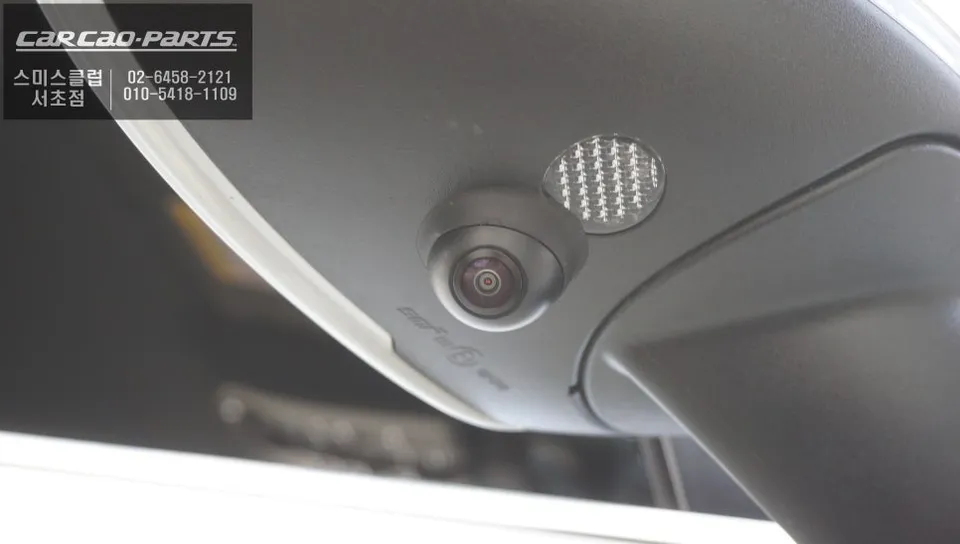

A 3D Surround View system fundamentally requires the installation of four cameras: one front, one rear, and one on each side. The critical part of the installation for the Macan involves mounting the side cameras precisely underneath the side mirrors. This step demands the utmost care and accuracy.
The process begins with carefully removing the original side mirrors, followed by drilling precise holes to securely mount the cameras. The wiring is then routed cleanly through protective conduits into the vehicle's interior, following the factory wiring paths. Improper installation can lead to water ingress or exposed wiring, causing potential issues. Therefore, professional installation by specialists experienced with import vehicles is crucial.
Rear Camera Options
For the rear camera, there are two primary installation methods. One utilizes the existing factory rear camera location, while the other involves adding a separate camera while retaining the original sensors. In this specific installation, the factory rear camera's functionality was preserved, and an additional surround view-specific rear camera was added. This approach ensures no compromise on existing safety features while providing superior visibility.
Integrating Four Cameras for a Seamless 360° View
To create a unified 360-degree view from the four individual cameras, a process called 'auto-calibration' is essential. This procedure aligns the angle, distortion, and brightness of each camera to a common standard. A specialized calibration pattern is placed around the vehicle, and the system software learns each camera's coordinates as the vehicle is slowly moved forward manually.
This meticulous calibration ensures that the vehicle's position displayed on the surround view screen accurately reflects its real-world location. It also provides an accurate sense of distance to parking lines and obstacles. Incomplete calibration can result in awkward seams in the composite image or inaccurate spatial awareness, potentially causing confusion during parking.
High-Definition LVDS Signal and Touch Integration
The system installed utilizes LVDS (Low-Voltage Differential Signaling) technology, enabling the transmission of high-resolution video to the factory monitor without signal loss. Unlike standard video compression methods, LVDS ensures a lossless signal path from the camera to the display, resulting in clear images even in low light or back-lit conditions.
Furthermore, this system integrates seamlessly with the factory touch monitor via UART communication. This allows the driver to activate/deactivate the surround view, change viewing angles, and control other functions directly through the monitor's touch interface, eliminating the need for additional external buttons on the dashboard and providing a cohesive user experience that perfectly complements the Macan's original interior design.
PAS (Parking Assist System) Integration
A notable feature of this system is its integration with the PAS (Parking Assist System). When the steering wheel is turned, the system displays the vehicle's projected path on the surround view screen, assisting the driver during parking maneuvers.
Frequently Asked Questions
Q. How much does a Surround View Camera cost for a Porsche Macan?
The installation for this specific Porsche Macan 3D Surround View camera system was performed in Korea. In the US, professional installation of similar 360-degree camera systems typically ranges from $800 to $2,500, depending on the vehicle and system complexity.
Q. How long does a Surround View Camera last on a Porsche Macan?
A professionally installed surround view camera system, when properly installed and maintained, can last for many years, often matching the lifespan of the vehicle's other electronic components. Regular cleaning of the camera lenses and ensuring wiring connections are secure can help prolong its durability.
Q. Is a Surround View Camera worth it for a Porsche Macan?
A surround view camera system is highly beneficial for Porsche Macan owners, especially those who frequently navigate tight parking spaces or drive in congested areas, significantly enhancing safety and reducing the risk of minor collisions. The investment provides peace of mind and can help preserve the vehicle's pristine condition.
Q. How is a Surround View Camera installed on a Porsche Macan?
Installation involves precisely mounting four high-resolution cameras (front, rear, and sides) onto the vehicle, often requiring drilling into the side mirrors and bumpers. The wiring is carefully routed through the car's interior, connecting to the factory infotainment system. Finally, an auto-calibration process is performed using specialized software and patterns to ensure accurate image stitching and spatial representation.
Q. What is the best Surround View Camera option for a Porsche Macan?
The best option often involves a system that utilizes LVDS for high-definition video output and integrates seamlessly with the factory touch screen via UART communication, like the one reviewed. This ensures crisp visuals and intuitive control without adding extra buttons, providing a factory-like experience.
