Lexus LS 600h Blind Spot Monitor Installation Review

Enhancing Safety: Blind Spot Monitoring for the Lexus LS 600h

Many drivers experience the unsettling moment when a light flashes on their side mirror, only to disappear just as quickly. This is the work of a blind spot monitoring system. For older vehicles like the 2009 Lexus LS 600h, advanced safety features such as blind spot detection were often not standard. A blind spot warning system is crucial for modern driving, alerting the driver to approaching vehicles in their blind spots during lane changes through visual and audible cues. Today, we detail the process of retrofitting this essential safety feature onto an LS 600h.

Understanding Blind Spot Sensors

The necessity of installing a blind spot system becomes clear when understanding its operation. Sensors, typically integrated near the side mirrors or bumpers, detect moving objects, primarily other vehicles, in the rearward blind spots. Upon detection, an indicator LED on the mirror illuminates, drawing the driver's attention. If the turn signal is activated while a vehicle is detected, an audible warning chime is also triggered, further enhancing awareness. This system significantly reduces anxiety during lane changes, especially during nighttime driving or in conditions with limited visibility.

S-RADAR Sensors vs. Standard Ultrasonic Systems

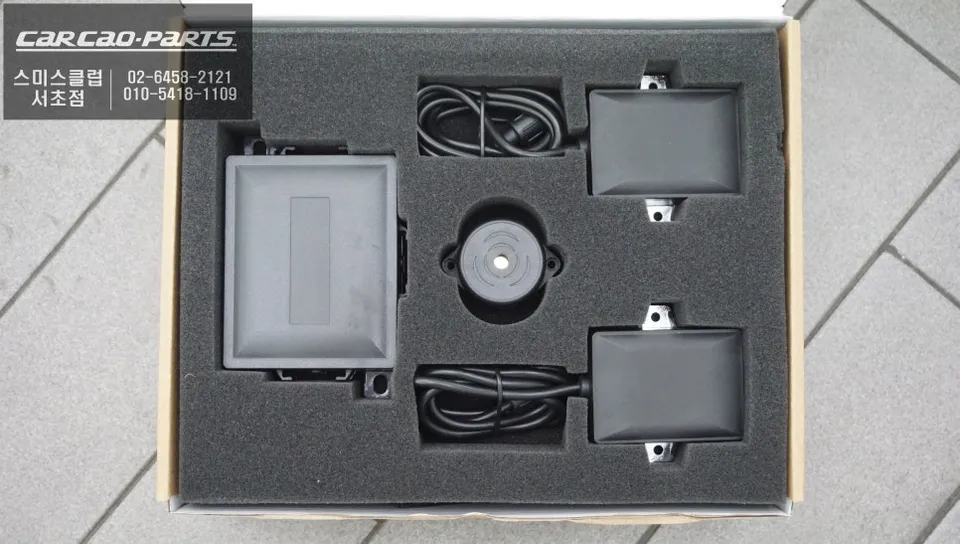

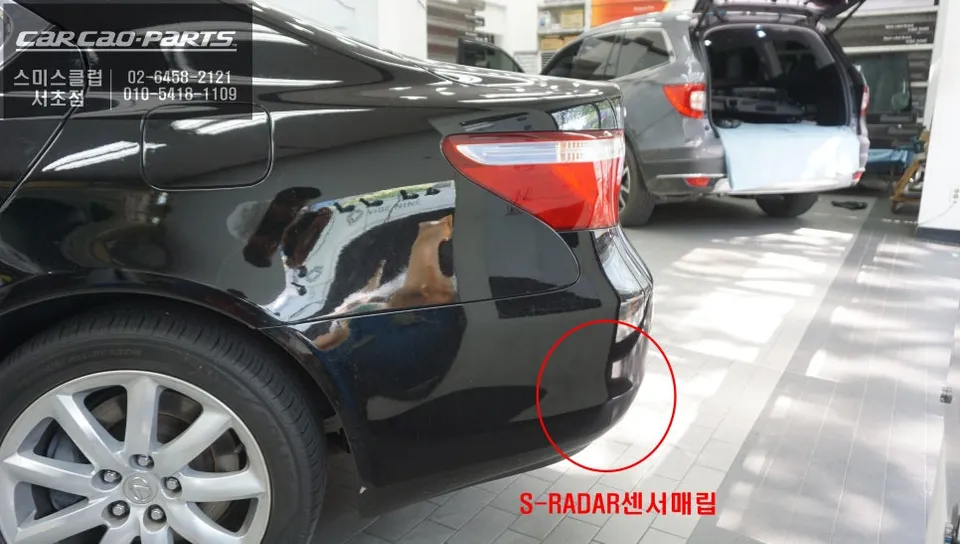

The market offers various blind spot sensor solutions. A common type involves drilling holes into the bumper to mount ultrasonic sensors, which can be aesthetically unappealing and prone to damage during car washes. In contrast, the S-RADAR system, installed on this LS 600h, offers a superior approach. S-RADAR sensors are meticulously positioned and angled on the interior of the bumper after its complete removal. This ensures they are completely concealed from view while accurately detecting moving objects in the rear-flank areas. The key advantage is achieving a clean, factory-like finish, indistinguishable from original equipment options.

Pre-Installation Assessment of the 2009 Lexus LS 600h

While the LS 600h is equipped with numerous premium safety features, blind spot monitoring was absent. A thorough inspection of the side mirror housing was necessary to determine the optimal placement for the indicator LEDs. The LS 600h's large mirrors and ample interior space made it an ideal candidate for the S-RADAR system. A detailed vehicle inspection confirmed the integrity of the bumper and wheel well structures, and assessed the rear clearance crucial for sensor positioning.

Installation Process:

1. Bumper Removal and Cleaning: The rear bumper is carefully detached, preserving all clips and fasteners, especially critical for imported vehicles. The interior surface of the bumper is then thoroughly cleaned to ensure optimal sensor adhesion.
2. Sensor Placement and Calibration: The S-RADAR sensors are precisely positioned on the inner sides of the bumper. Their angle is calibrated to detect only moving vehicles within the designated blind spots, preventing false alerts. This involves calculating the optimal location based on the vehicle's width and height.
3. Wiring and Integration: The sensors are connected to the vehicle's electrical system. This complex process involves tapping into the ECU (Engine Control Unit) for power, ground, and signal wires, requiring specialized knowledge of the LS 600h's intricate wiring harness.

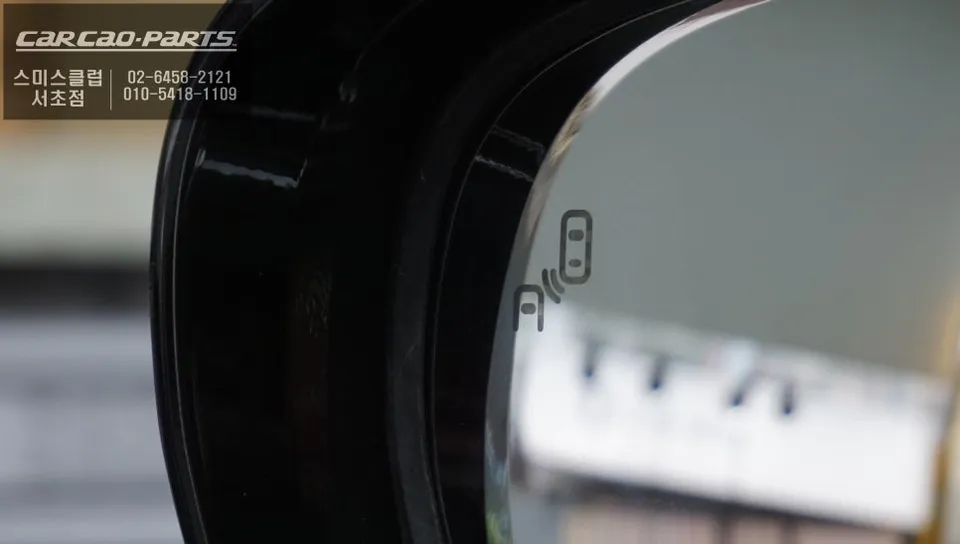

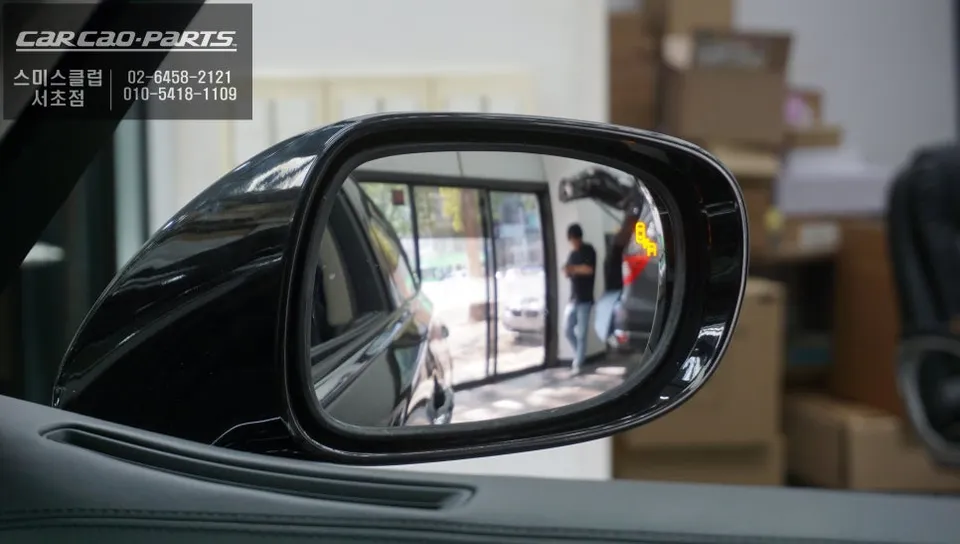

4. Indicator LED Installation: Small indicator LEDs are discreetly mounted within the side mirror housings, ensuring they are visible to the driver without being obtrusive.
5. System Testing and Finalization: After reassembling the bumper, the system undergoes rigorous testing to confirm accurate detection and warning signals under various driving conditions.

Wiring and Digital Integration

Following sensor installation, the intricate wiring process begins. The Lexus LS 600h features a highly complex internal wiring system, making professional expertise essential. Signal, power, and ground wires must be correctly branched and connected to the ECU. Specifically, this vehicle utilizes a CAN-BUS system, requiring careful integration to ensure seamless communication between the new sensors and the car's existing network without compromising other electronic functions.

Conclusion: Enhanced Awareness for a Luxury Sedan

The S-RADAR blind spot monitoring system provides a significant safety upgrade for the 2009 Lexus LS 600h. By accurately detecting vehicles in blind spots and providing timely alerts, it greatly enhances driver confidence and reduces the risk of accidents during lane changes. The invisible installation ensures the vehicle's aesthetic integrity is maintained, offering a truly integrated solution.
