While the Tesla Model 3 boasts advanced camera-based autonomous driving features, it notably lacks a comprehensive 360-degree view of its surroundings, a common upgrade sought by owners. In urban environments, especially with numerous underground parking garages, the ability to instantly assess all-around obstacles is crucial. Many owners find that the existing side and rear cameras are insufficient for this purpose. If you're questioning the necessity of this upgrade, most users report a significant improvement in their daily driving experience after installation.

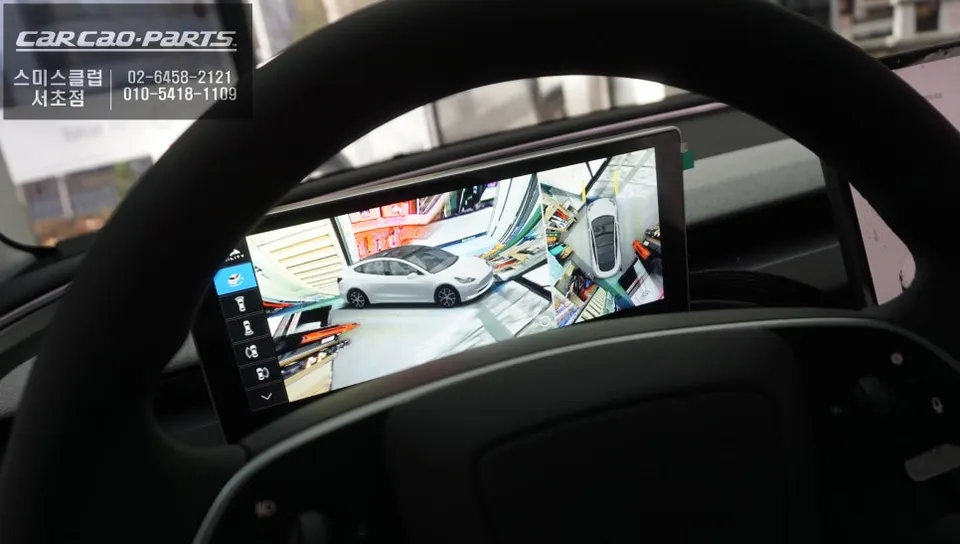

The installation involves four cameras: one below the front license plate, one near the rear license plate, and one on each side of the vehicle. These cameras work in unison to create a bird's-eye view, simulating a top-down perspective of the car and its immediate environment. This composite image is displayed on a new 10.25-inch monitor, integrated using a 3D MaxPro device for high-definition output and UART communication. This setup allows for seamless switching between various views—top, left, right, and rear—via touch controls or a wireless remote.

Expert Installation for Tesla's Unique Electrical System

Tesla vehicles utilize a distinct electrical system compared to traditional internal combustion engine cars. Improper wiring can potentially disrupt the car's Electronic Control Unit (ECU). To mitigate this risk, professional installers connect the surround view system's power through the cigarette lighter socket. This method ensures the system only activates when the ignition is on and automatically powers down when the car is turned off, preventing unnecessary battery drain.

Furthermore, the signals for the reverse gear and turn signals are integrated independently from the car's original wiring. This approach minimizes the electrical load on Tesla's high-voltage system, as a single faulty connection could potentially reset the entire vehicle's electronics. This meticulous attention to electrical integrity is a key differentiator between experienced specialists and general tuning shops.

Precision Camera Placement for Optimal Performance

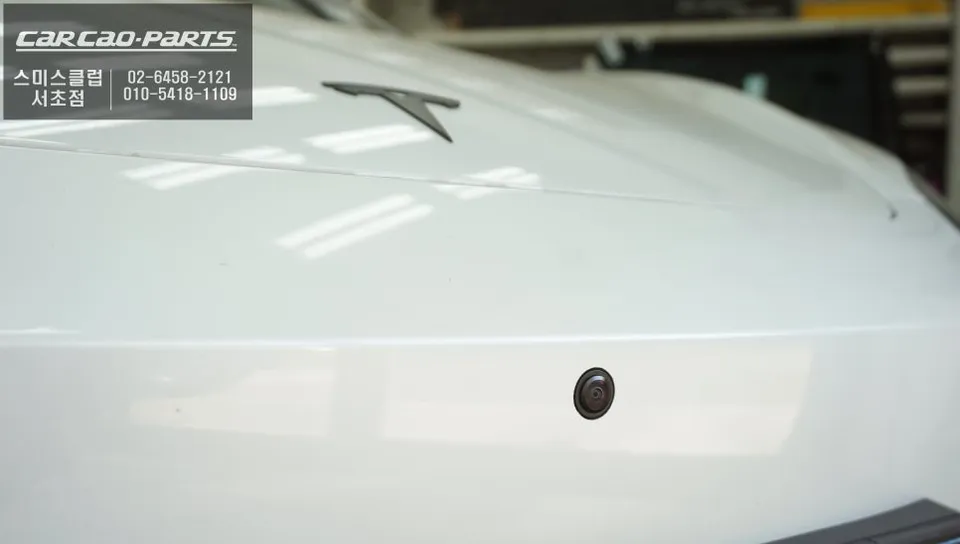

The effectiveness of a surround view system hinges on the precise placement of its cameras. The front camera, for instance, is typically installed on the lower bumper, below the license plate. Achieving this requires precise drilling into the bumper to recess the camera, ensuring it captures a low-angle view of forward obstacles. The rear camera is positioned near the reverse lights, and the side cameras are mounted at appropriate heights on the vehicle's flanks. Accurate spacing and angles between all cameras are vital for creating a seamless and accurate 360-degree image.

Installation Process:

1. Camera Mounting: Precisely position and secure the four cameras (front, rear, left, right) at designated locations on the vehicle's exterior.
2. Wiring Integration: Connect the cameras to the central control unit and integrate the power supply via the cigarette lighter socket, ensuring a safe and independent electrical connection.
3. Monitor Setup: Install the 10.25-inch display and connect it to the 3D MaxPro module for video output.
4. System Calibration: Calibrate the cameras to ensure accurate image stitching and a seamless 360-degree view, adjusting for perspective and distance.
5. Functionality Test: Verify all camera views, touch controls, and remote functions operate correctly.

This upgrade significantly enhances parking maneuverability and overall driving awareness, making it a valuable addition for Tesla Model 3 owners navigating complex driving environments.
