Tesla Model Y Surround View Camera Installation Review
Tesla Model Y Surround View Camera installation: Price not specified. Enhances parking safety with 360° visibility and eliminates blind spots.
Why Your Tesla Model Y Needs a Surround View Camera
The 2023 Tesla Model Y, unlike many premium imported vehicles, doesn't come standard with front parking sensors. This leaves a significant gap in obstacle detection, especially crucial for preventing low-speed collisions. Owners often worry about blind spots during parking, navigating tight underground garages, or maneuvering through narrow streets. To address this common concern, a Tesla Model Y owner opted for the installation of a CarZone 3D Surround View Camera system at a certified professional shop. A key consideration for Tesla owners is the potential impact on vehicle warranty. To mitigate this, the system was wired to power on and off via the center console's cigarette lighter socket, allowing for use only when needed and minimizing warranty concerns.
Dedicated Monitor: The Key to Model Y Surround View Integration

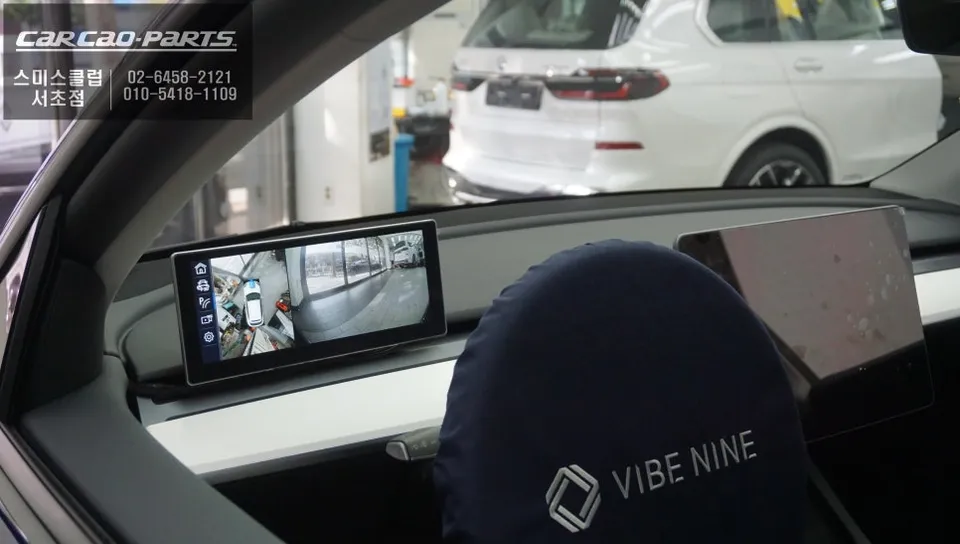

A critical aspect of installing a surround view system on a Tesla Model Y is its incompatibility with the native center display. This means a separate, high-definition monitor must be installed to view the camera feeds. The chosen solution for this installation was a 10.25-inch Qudis wide monitor with a 1920x1080 Full HD resolution. This high-quality display is essential for accurately rendering the detailed images provided by the surround view cameras, directly impacting the system's effectiveness.
CarZone Season 5 3D Surround View: Superior Imaging
Surround view cameras offer different output types: CVBS (analog, lower quality), AHD (mid-range), and HDMI (highest clarity). This installation utilized the CarZone Season 5 3D Surround View system, which features HDMI output for the clearest possible image. A standout feature of the CarZone Season 5 is its WDR (Wide Dynamic Range) capability. WDR technology digitally corrects camera sensor signals in challenging lighting conditions like backlighting, tunnel transitions, and nighttime glare, ensuring a clear view. The system uses four 180-degree wide-angle cameras (front, rear, left, right) to eliminate blind spots during driving.
Calibration: The Art of Accurate Surround View
After the four cameras are installed, the most crucial step is calibration. This process determines the accuracy of the surround view system. A specialized pattern is laid on the ground, and the cameras are configured to recognize it. This allows the system to calculate the angle, distortion, and distance from each camera, creating a precise top-down (bird's-eye) view. Without proper calibration, the displayed vehicle image can be distorted, and distance estimations can be inaccurate, potentially leading to accidents.
Installation process:

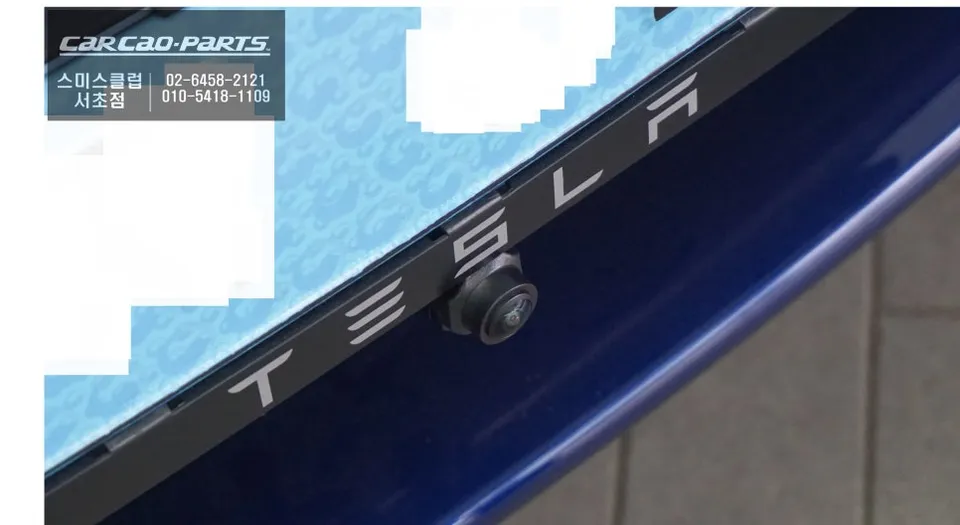

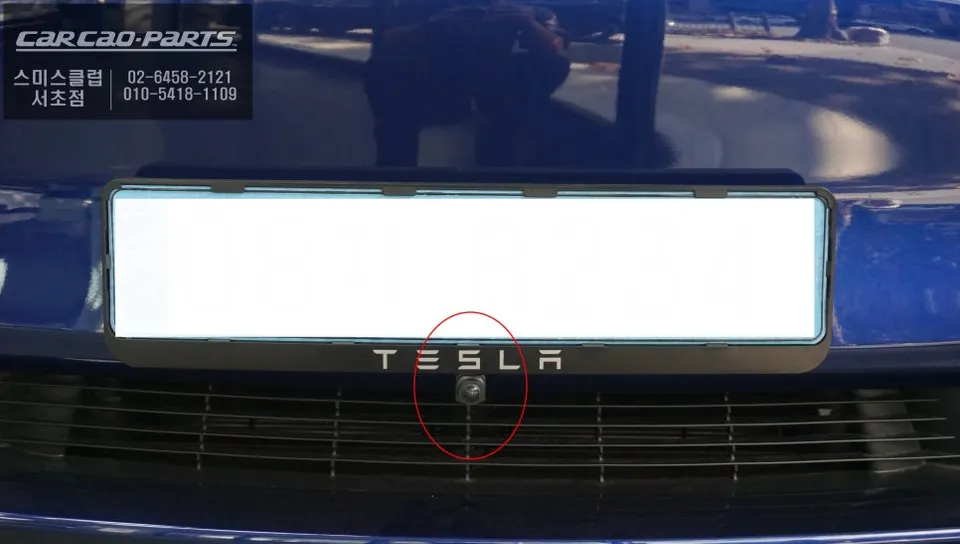

- Mounting four 180-degree wide-angle cameras on the vehicle's exterior (front, rear, sides).
- Connecting the cameras to the central control unit and the new dedicated monitor.

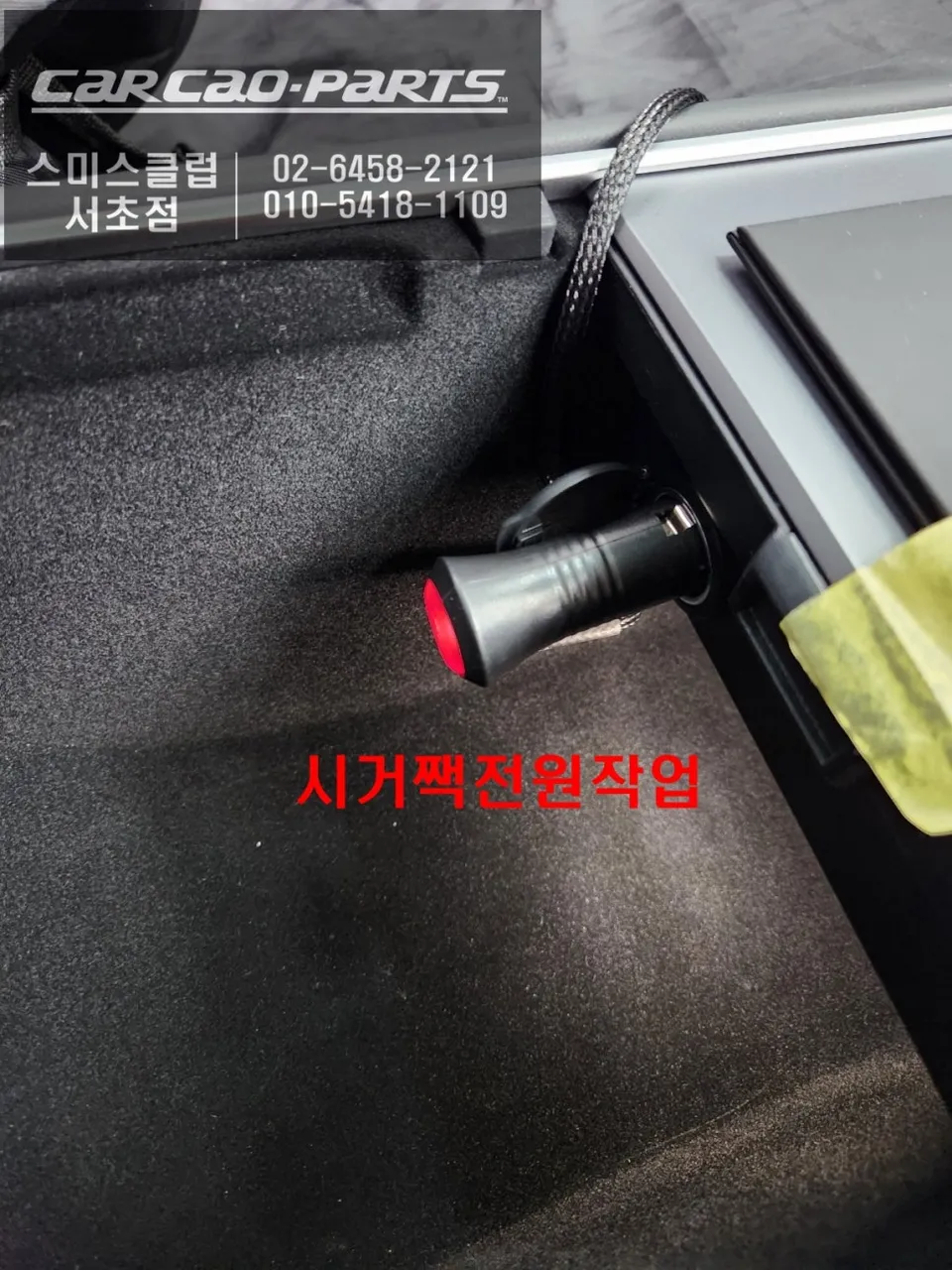

- Powering the system via the center console's cigarette lighter socket.
- Performing precise calibration using a ground pattern to ensure accurate 360° imaging.
- Integrating turn signal and reverse gear signals for automatic camera switching.

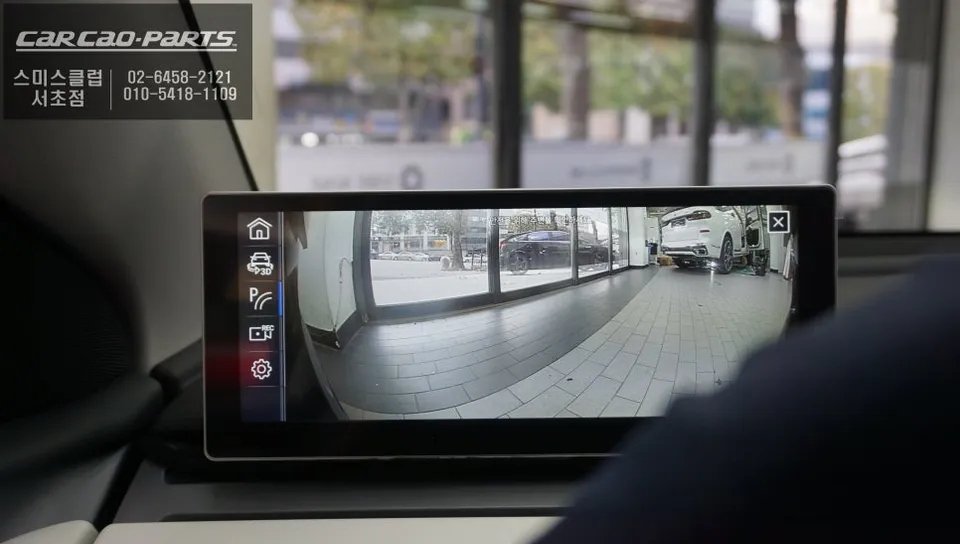

Once calibrated, the driver gains a comprehensive 360-degree view, akin to a drone's perspective. This significantly enhances situational awareness, making parking maneuvers safer by providing accurate distance readings to surrounding obstacles like poles, walls, and other vehicles, drastically reducing the risk of fender benders.
Enhanced Features for Model Y Surround View
Additional convenience features were integrated into this installation. The system is configured to automatically display the side camera view when the corresponding turn signal is activated and the rear camera view when the vehicle is put into reverse. This seamless integration provides drivers with critical visual information exactly when they need it.
Frequently Asked Questions
Q. How much does Surround View Camera cost for a Tesla Model Y?
The specific cost for this CarZone 3D Surround View Camera installation on a Tesla Model Y was not detailed in the review. Typical aftermarket surround view systems in the US can range from $500 to $1500, depending on the brand and features.
Q. How long does Surround View Camera last on a Tesla Model Y?
The longevity of a surround view camera system typically depends on the quality of the components and installation, often lasting several years. Regular cleaning of the camera lenses and ensuring connections are secure can help maintain optimal performance.
Q. Is Surround View Camera worth it for a Tesla Model Y?
A surround view camera system is highly beneficial for Tesla Model Y owners who frequently navigate tight spaces or are concerned about parking lot dings, as it significantly improves visibility and reduces collision risk. The added safety and convenience it provides often outweigh the cost for many drivers.
Q. How is Surround View Camera done on a Tesla Model Y?
Installation involves mounting four wide-angle cameras (front, rear, sides), connecting them to a control unit and a dedicated monitor, and powering the system. Crucially, a precise calibration process using a ground pattern is performed to ensure accurate 360° imaging and distance measurement.
Q. What is the best Surround View Camera option for a Tesla Model Y?
The CarZone Season 5 3D Surround View system, featuring HDMI output and WDR technology for superior clarity and performance in various lighting conditions, is presented as a high-quality option. For Tesla Model Y, choosing a system with a dedicated monitor and professional calibration is key.
