Tackling the Ford Explorer's Blind Spots with a 360 Camera

The Ford Explorer is a popular large SUV, praised for its spaciousness and capability. However, its substantial size also means a larger footprint and, consequently, more blind spots. This is particularly noticeable during parking maneuvers, where the lack of visibility around the front, rear, and sides can cause significant anxiety. One owner, feeling this unease shortly after purchasing their Explorer, decided a surround view camera system was essential for enjoying their vehicle with confidence. This is especially true in urban environments like Seoul, with its narrow alleys and tight parking spaces, which can be stressful for drivers of larger vehicles. The owner stated, "I found myself driving slowly every time I parked, feeling anxious," and concluded that "safety options are a must to fully enjoy the car." Opting for a 360 camera installation was the solution to alleviate these concerns.

Achieving an Overhead View with Four Cameras

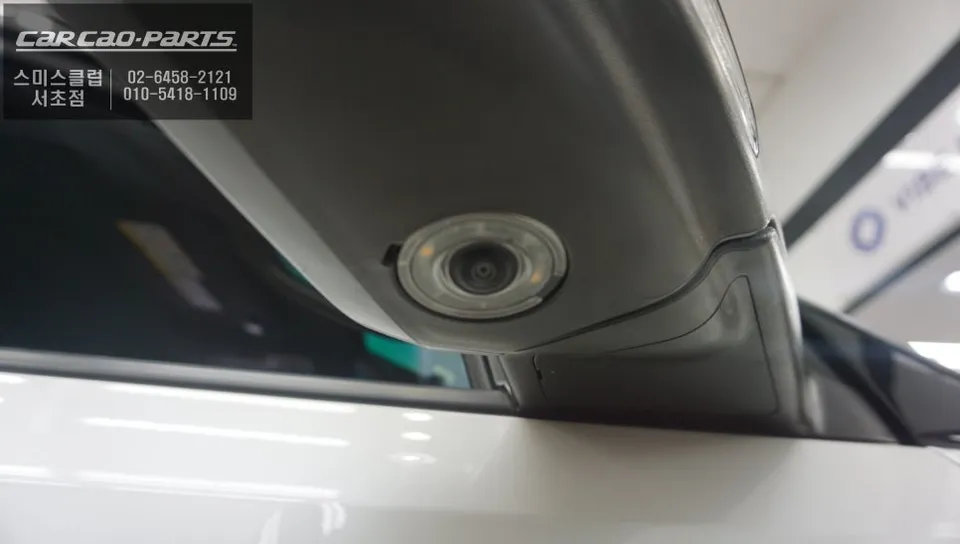

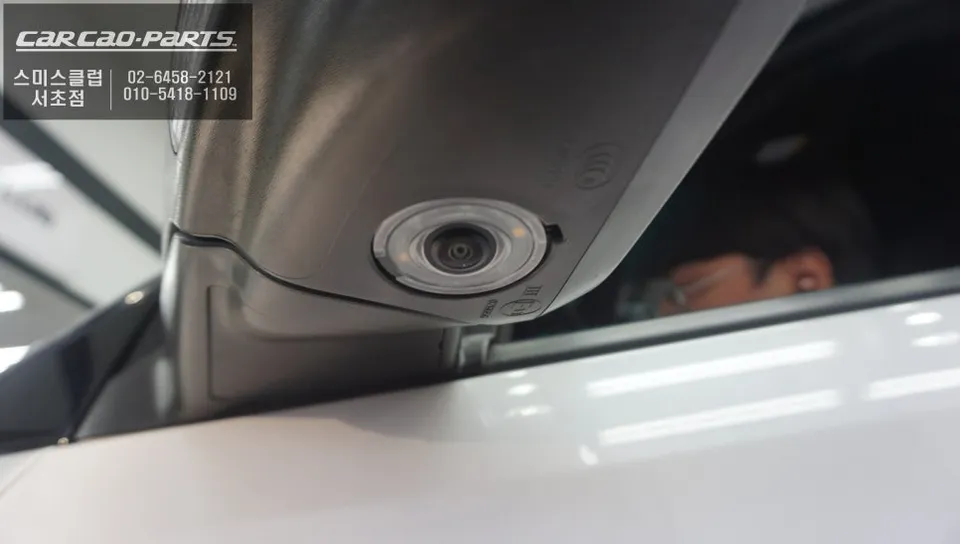

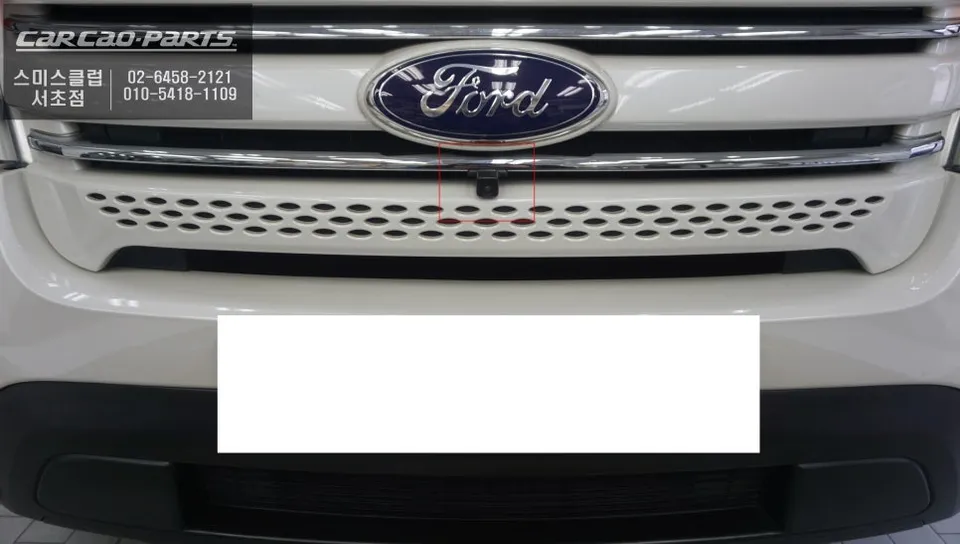

The chosen system, branded as '2D Super View,' stood out because it was designed specifically for the Explorer. Unlike many aftermarket solutions that require modifying existing bumpers, this system integrates cameras seamlessly. It includes two side cameras, one rear camera integrated with the license plate light, and a front camera that replaces the existing fender light. This approach ensures the cameras are mounted like genuine factory parts, maintaining a clean, OEM-like aesthetic. The installation process involves precise marking of each camera location, followed by careful removal of the original components. The front camera is a direct 1:1 replacement for the fender light, requiring no drilling. Similarly, the rear camera replaces the license plate light unit, offering a discreet integration. This method preserves the vehicle's original look while adding advanced functionality.

Once all four cameras are installed, the critical calibration process begins. This involves using a specialized pattern and manually adjusting the angle and range of each camera to create a seamless, accurate bird's-eye view. Proper calibration is vital; without it, the displayed image can be distorted or misaligned, potentially making parking more difficult rather than easier.

The Bird's-Eye View: 360-Degree Obstacle Awareness

After calibration, the system projects a remarkable view onto a dedicated monitor, simulating an overhead perspective of the vehicle and its surroundings – commonly known as the 'top view' or 'around view' monitor. This is achieved by stitching together the real-time feeds from the four cameras to create a comprehensive 360-degree panorama. This system effectively eliminates common blind spots, making drivers aware of low-lying objects near the vehicle's sides, curbs, or obstacles directly in front or behind during parking. The clarity and completeness of the view provide a significant sense of security.

A key advantage is the flexibility of viewing modes. Drivers can select individual front, rear, left, or right views, switching between them as needed. This is particularly useful when navigating tight spaces; alternating between side views helps maintain clearance in narrow alleys, while the top view aids in precise positioning when backing into a parking spot.

2D Super View: Quality and Practicality

The quality of the cameras themselves is paramount. This system features SUPER HD resolution cameras, ensuring clear images in both daylight and nighttime conditions. The cameras also include an automatic brightness adjustment function to compensate for challenging lighting, such as strong backlight, preventing the image from becoming washed out.

Installation Process:

1. Precise marking and removal of original fender lights and license plate light housing.
2. Installation of the new cameras, ensuring a flush, factory-like fit.
3. Wiring all cameras to the central control unit and display.
4. Performing detailed calibration using a special pattern to align camera views.

The estimated cost for this type of parking camera retrofit in the US can range from $150 upwards, depending on the specific system and installation shop. While the original installation was performed in Korea, the technology and benefits are universal for Ford Explorer owners seeking enhanced parking safety.
