Hyundai Tucson Dash Cam Installation Review

Hyundai Tucson Dash Cam & Rear Camera Replacement

Experiencing a malfunctioning rear camera or dash cam can be incredibly frustrating, especially when it impacts your daily driving and parking confidence. This review details the process of replacing a faulty rear camera and installing a new dash cam system on a Hyundai Tucson IX, addressing common issues and highlighting the benefits of upgraded equipment.

Diagnosing and Replacing a Faulty Rear Camera

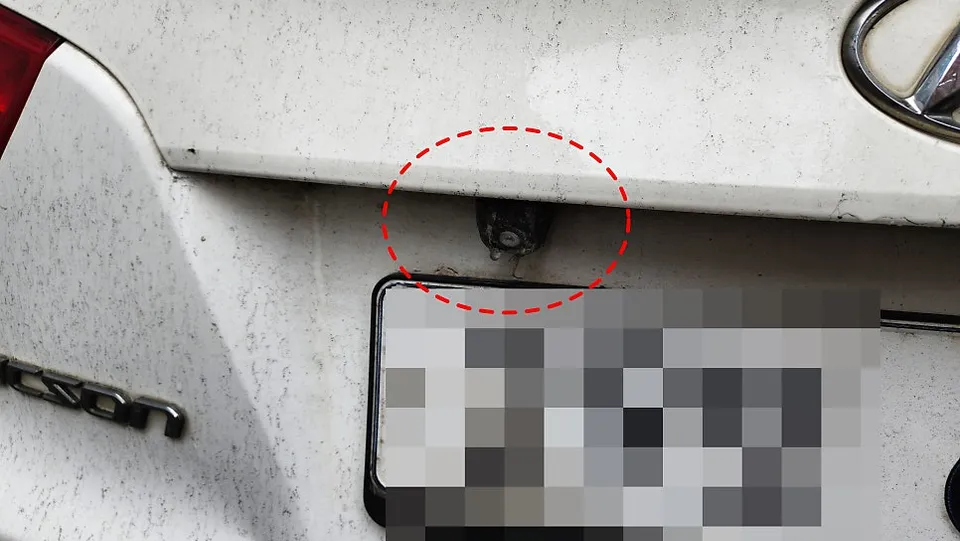

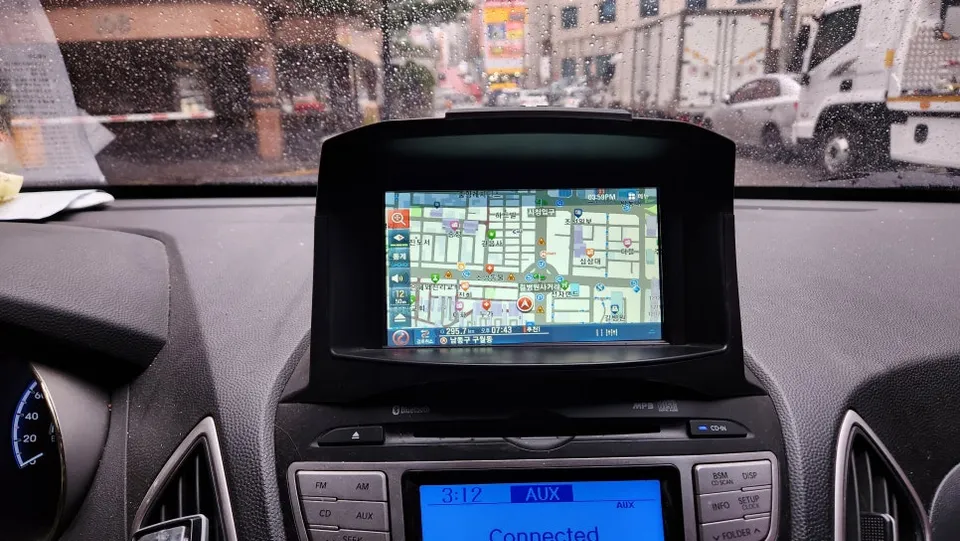

The owner of this Hyundai Tucson IX visited us due to a non-functional rear camera, which prevented the navigation screen from displaying any image when reversing. This is a common issue, and it's crucial to determine if the problem lies with the camera itself or the connected navigation unit. In this case, the existing rear camera was found to be heavily corroded and damaged, likely due to age and exposure to the elements. Such extensive wear means replacement is the only viable solution, rather than attempting repairs.

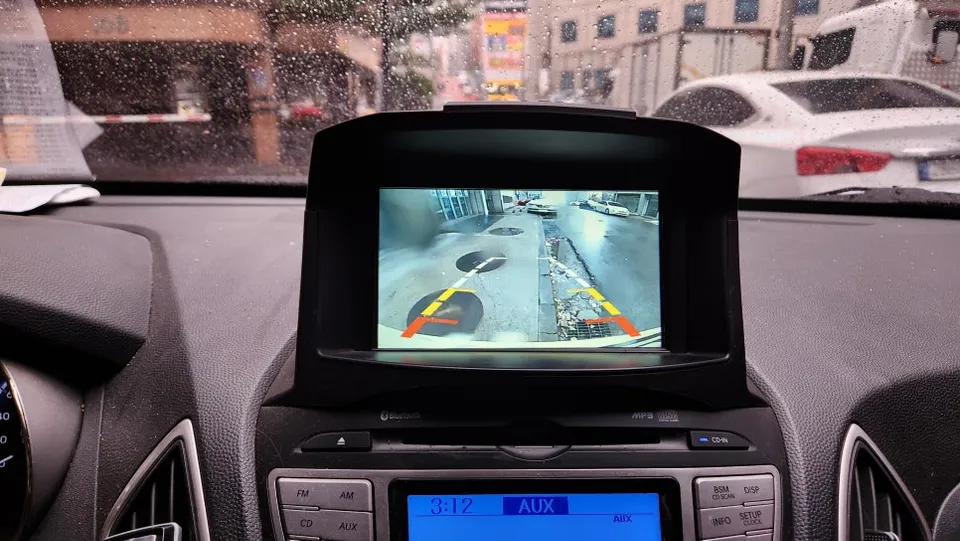

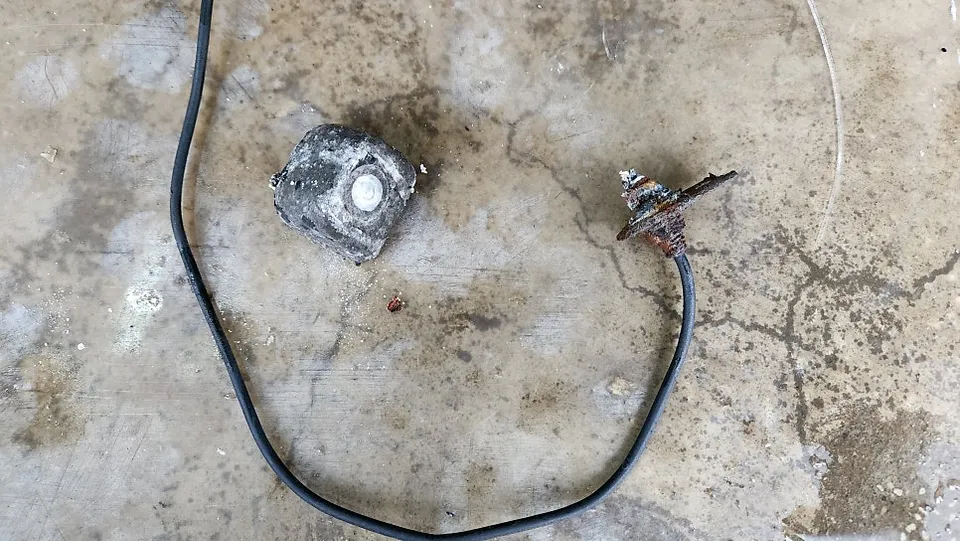

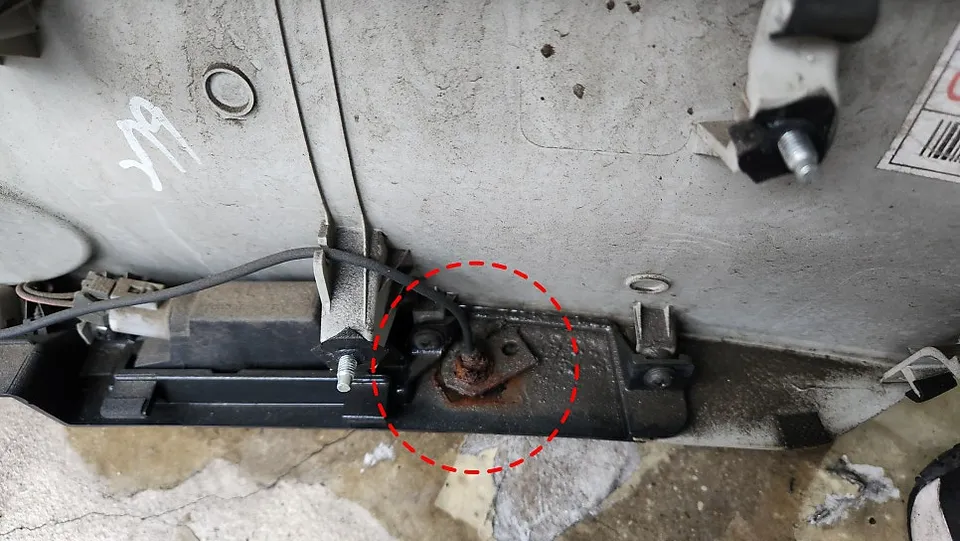

The replacement process involves carefully removing the rear garnish panel to access the old camera. Due to severe corrosion, the original unit was difficult to detach and had to be carefully dismantled. Once removed, a new rear camera was installed in the factory location, ensuring optimal viewing angles and a clean aesthetic. After installation, engaging reverse gear immediately brought up a clear, crisp image on the navigation screen, significantly improving the driver's ability to park and maneuver safely. While the replacement took some time, the restored functionality and peace of mind were well worth the effort.

Upgrading to the Inaview ZX1000 Dash Cam

Alongside the rear camera replacement, the vehicle's old, non-functional 1-channel dash cam was also removed. To meet modern driving needs, the owner opted for the Inaview ZX1000, a popular 2-channel dash cam known for its excellent value. This model features an intuitive touchscreen interface, making it easy to adjust settings like impact sensitivity and manage recordings. A critical feature for many drivers is the low-voltage cut-off function, which prevents the dash cam from draining the car battery during parking mode recording.

Installation process:

1. Carefully route and conceal wiring for both front and rear cameras.
2. Connect the dash cam to the vehicle's power source, utilizing a hardwire kit for parking mode functionality.
3. Configure dash cam settings, including impact sensitivity and low-voltage cut-off, via the touchscreen.
4. Test all functions, including recording, playback, and parking mode activation.

The Inaview ZX1000 offers reliable parking mode recording, automatically activating after the vehicle is turned off. The duration of parking mode is adjustable based on the vehicle's battery health and the dash cam's voltage settings. While this feature provides crucial evidence in case of hit-and-run incidents, it's essential to be mindful of potential battery drain.

The total installation, including rear camera replacement and the new dash cam, took approximately 3-4 hours. The cost for rear camera replacement can start around ₩50,000 (approximately $35-$40 USD), depending on the camera model and vehicle. The Inaview ZX1000 installation typically ranges from ₩200,000 (approximately $150-$180 USD) and up. Exact pricing requires a vehicle inspection.
