Lexus ES 300h CarPlay Retrofit Review: Seamless Integration

Upgrade Your Lexus ES 300h Infotainment with a CarPlay Retrofit

For owners of the 7th generation Lexus ES 300h, a common question arises: "Can I use navigation apps like T Map or Kakao Map on my sophisticated factory infotainment screen?" The answer is a resounding yes, thanks to the installation of a CarPlay module. This review details a recent installation at Today's Car Seocho in South Korea, demonstrating how to enjoy modern navigation on your original monitor without compromising its premium feel.

Factory vs. Aftermarket CarPlay: What's the Difference?

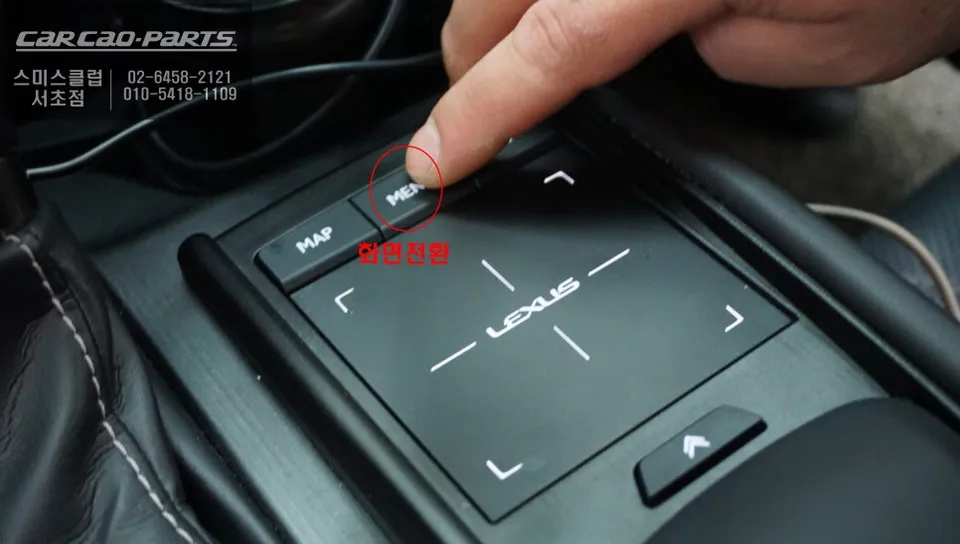

While newer Lexus models often come equipped with CarPlay, the 7th gen ES 300h predates this feature. Its elegant built-in monitor typically supports older navigation systems requiring SD card updates, like Atlant or iNavi. However, by adding a CarPlay module, you unlock the ability to control your smartphone's navigation apps – complete with real-time traffic data and instant map updates – directly on your factory screen. The most significant advantage? It preserves 100% of your original system's functionality. A simple two-second press of the MENU button seamlessly switches between CarPlay and your native Lexus interface, retaining the original screen's design, responsiveness, and even voice control features.

The Importance of GVIF High-Definition Signal Transmission

When integrating a CarPlay module with your factory monitor, the video signal transmission method is crucial. Using standard, lower-quality connections like RCA cables can result in a noticeably degraded, blurry image on your premium display. The installation performed at Today's Car Seocho utilized the GVIF IN/OUT method. In essence, this technology facilitates a high-quality digital signal exchange between the monitor and the module. GVIF offers superior clarity, faster response times, and fully leverages your factory monitor's high refresh rate capabilities. This ensures a crisp, lag-free navigation experience that looks as refined as a brand-new vehicle.

Precision 'Pin-by-Pin' Wiring for Safety and Reliability

Integrating aftermarket components into a complex vehicle system like the Lexus ES 300h requires meticulous attention to wiring. Simply splicing or cutting existing connectors is a risky approach that can disrupt the car's intricate electronic control systems. The method employed here, known as 'pin-by-pin' (or 'jack-by-jack') installation, involves carefully identifying and matching each individual wire pin to connect the CarPlay module. This technique ensures that the original wiring harness remains undamaged, allowing the CarPlay signal to be added cleanly and safely. It significantly minimizes the risk of monitor malfunctions or system errors during and after installation.

The Installation Process: A Closer Look

The installation on this Lexus ES 300h followed a precise procedure. First, the trim panels surrounding the factory monitor were carefully removed. This step requires delicate handling, as damage to these components can be costly. Technicians at Today's Car Seocho used specialized suction tools to gently detach the panels, preserving their integrity.

Once the panels were off, the wiring harness behind the monitor was exposed. This is where the detailed work began. Technicians meticulously mapped the GVIF signal wires (IN/OUT), power, ground, and existing navigation signal lines, referencing wire colors and pin numbers. Unlike exterior cosmetic work, this is a high-precision electronic task where accuracy is paramount.

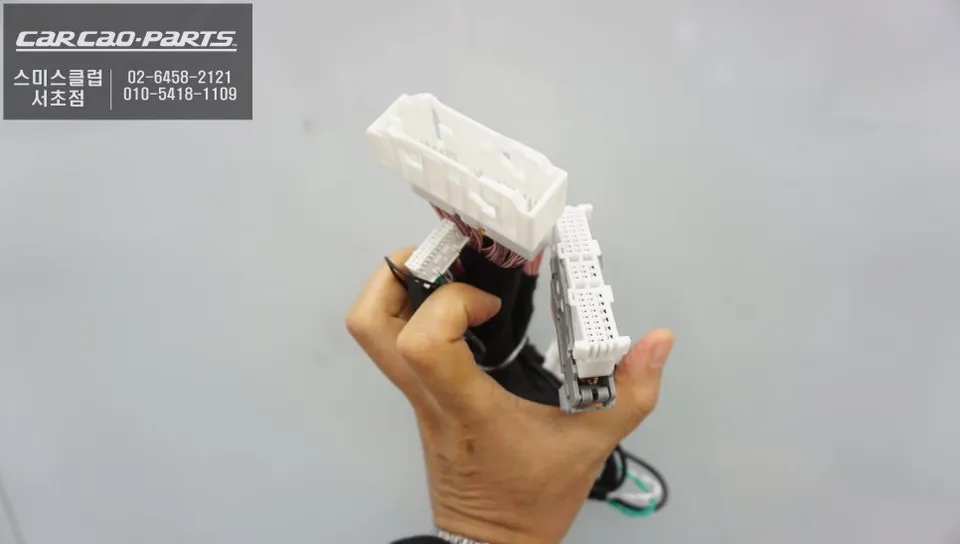

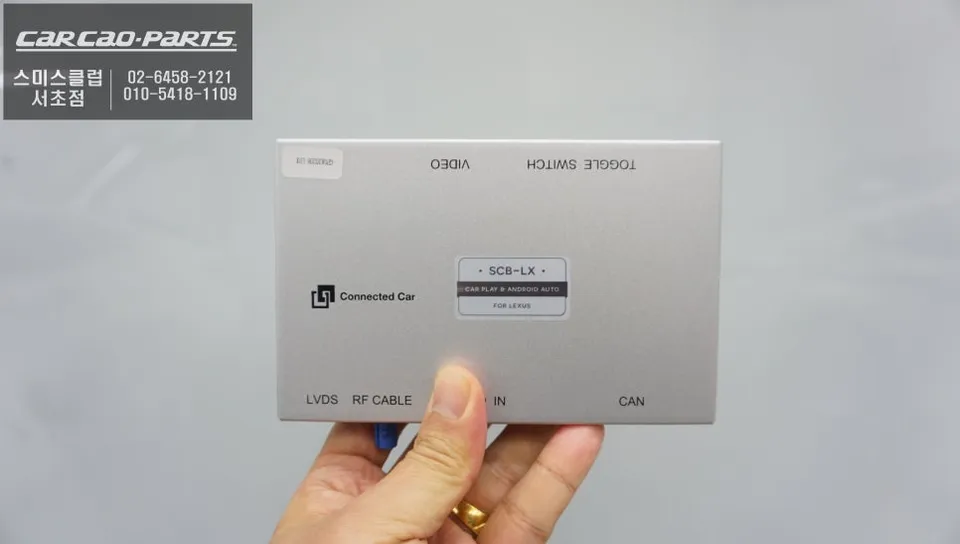

The CarPlay module itself is a compact unit. It connects directly to the factory monitor by integrating into the existing wiring loom via custom connectors, ensuring a plug-and-play integration without cutting factory wires.

After the module was connected and tested, the trim panels were reinstalled, returning the interior to its original appearance, now enhanced with full smartphone integration capabilities. The entire process, while intricate, prioritizes the preservation of the vehicle's original state while adding modern functionality. The estimated cost for this type of installation in South Korea starts around 150,000 KRW (approximately $110 USD), though prices can vary based on the specific module and installer.
