Ford Explorer Seat Ventilation System Diagnosis and Repair

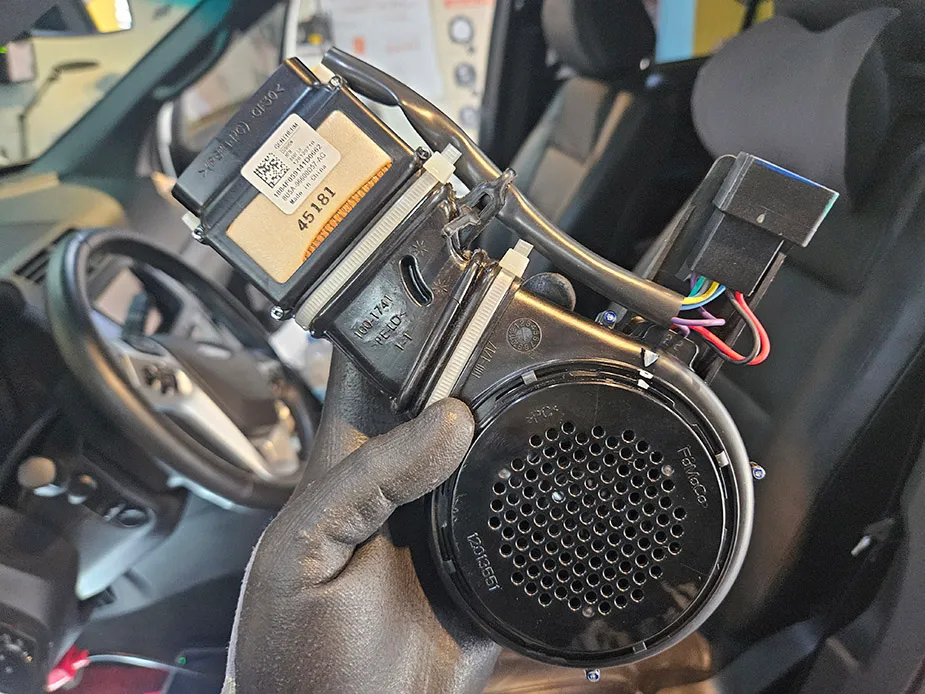

A Ford Explorer recently visited our shop with a malfunctioning driver's seat ventilation system. The owner reported that the seat's cooling function was not working at all, while the heating occasionally worked briefly before stopping. This issue persisted even after the owner had already replaced the ventilation fan at another facility and a dealership, prompting them to seek further expert diagnosis.

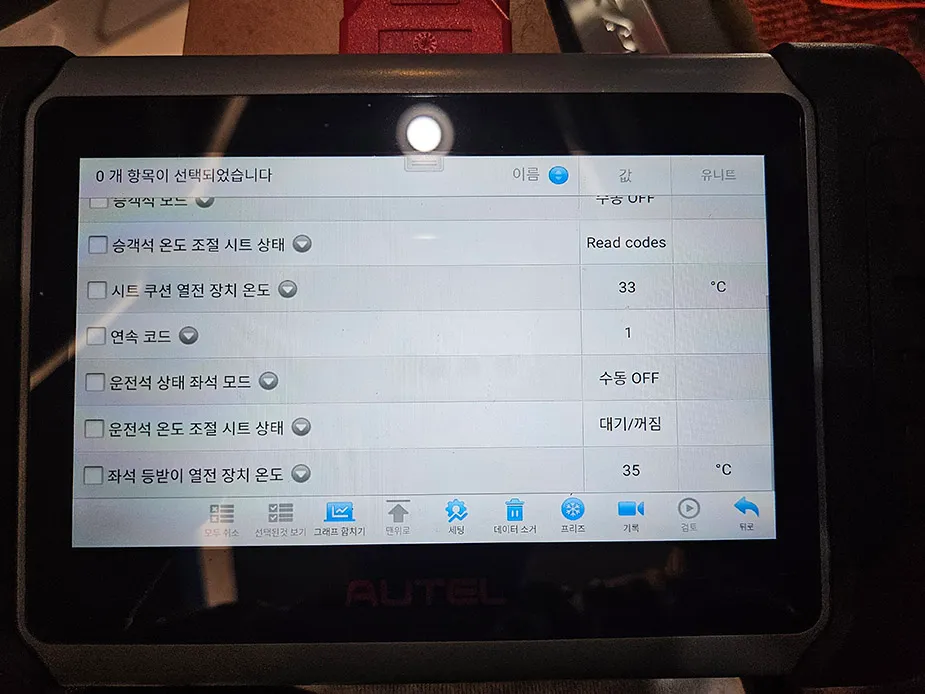

Upon initial inspection, we connected a diagnostic tool to the vehicle's system. We detected a significant temperature increase, nearing 90 degrees Celsius, in a specific area. Our hypothesis was that this overheating triggered a safety mechanism, causing the system to shut down. To pinpoint the exact cause, we decided to meticulously inspect every component, starting from the fuse box, tracing the interior wiring harness, and examining the connectors beneath the seat.

Wiring and Connector Restoration

Our thorough examination revealed a critical issue: a specific section of wiring was not receiving proper power. This indicated a break or degradation in the electrical pathway. Consequently, we proceeded with repairing and restoring the affected wiring, along with the associated pins and connectors. Fortunately, the problem was not overly complex, allowing us to identify and rectify the root cause relatively quickly.

Following the repairs, we conducted multiple tests to confirm that the seat ventilation system was functioning correctly. To ensure the long-term stability and prevent recurrence, we monitored the system for an additional 20-30 minutes. After confirming its reliability, the Ford Explorer was cleared and returned to the owner in optimal condition.

Understanding Seat Ventilation Failures

Seat ventilation and heating systems can fail for various reasons. The most common culprits are worn-out or faulty ventilation fan motors. However, as demonstrated by this Ford Explorer case, issues can also stem from damaged wiring, defective connectors, or problems with the control module. Sometimes, a blown fuse or temporary shutdowns due to overheating can also occur. Accurate diagnosis requires specialized equipment and experienced technicians.

The repair process typically begins with a comprehensive diagnostic assessment. Technicians use diagnostic tools to read error codes and measure voltage and resistance in individual components. If a fan motor is suspected, replacement is usually the first step. For wiring or connector problems, repair or replacement of the affected parts is performed. If the control module is faulty, it may need to be repaired or replaced. Thorough testing follows all repairs to ensure the system operates as intended. In cases of overheating-induced malfunctions, like the one in this Ford Explorer, a detailed inspection of the wiring and connectors is crucial.

Maintaining Your Seat Ventilation System

Proper maintenance is key to extending the lifespan and performance of your seat ventilation system. Avoid letting debris enter the fan intake, as this can cause damage. To prevent overheating during prolonged use, periodically turn off the system or switch to a different mode. Be cautious about spills on the seat surface; use a dedicated cleaner for any stains. Regular inspections can help identify potential issues like wiring degradation or unusual fan noise early on.
