Ford Explorer Surround View Camera Review — Enhanced Safety
Ford Explorer Surround View Camera installation enhances parking safety with 360° visibility. Offers clear sky view and integrates with parking sensor
Why Install a Surround View Camera on Your Ford Explorer?
Drivers of the Ford Explorer (5.5 generation) often seek ways to enhance their parking experience and overall safety. This review details the installation of a 2D Super View Surround View System combined with BSM wide-angle mirrors. The primary motivation for this upgrade is to overcome parking difficulties by providing a comprehensive 360-degree view of the vehicle's surroundings. This system is not merely a convenience feature but a crucial safety option, especially for a large SUV like the Explorer. With over 1,050 cumulative installations of surround view systems on imported vehicles, the installer, Today's Car Seocho Branch, ensures a tailored and high-quality application for the Ford Explorer.
Understanding Surround View: The 360° Camera Technology

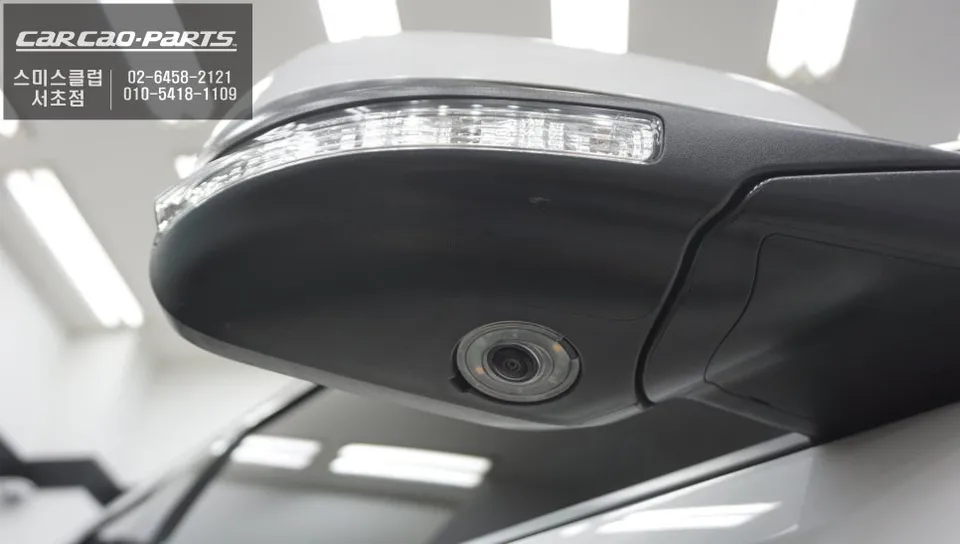

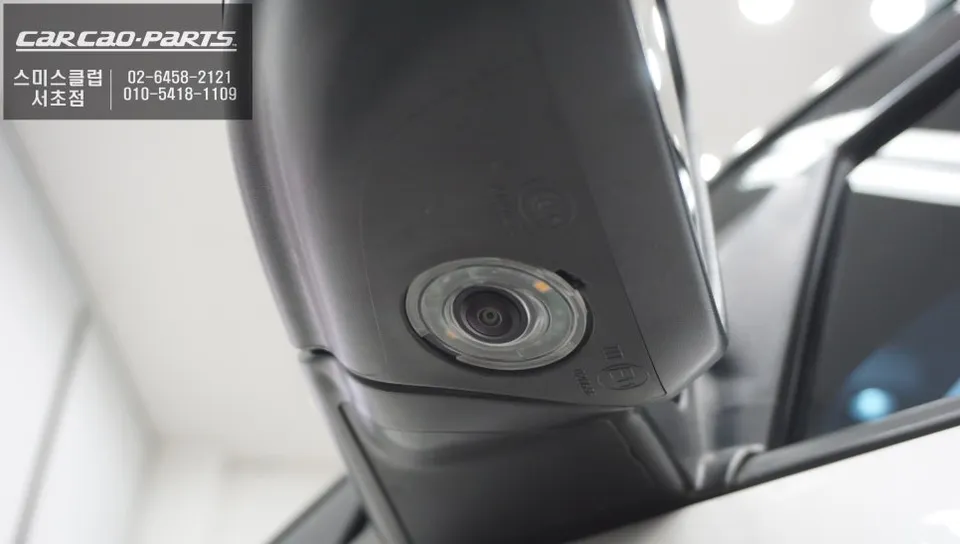

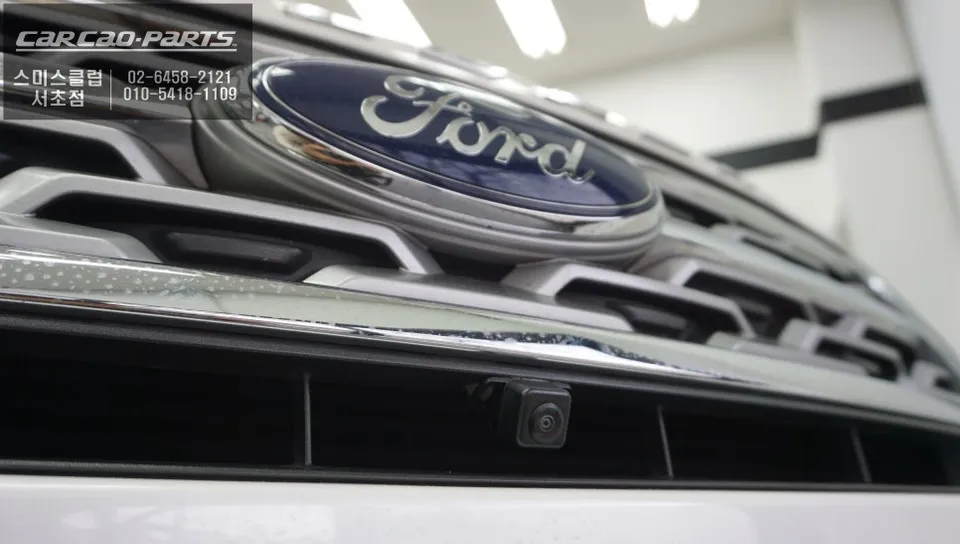

A surround view system utilizes four high-definition cameras—mounted on the front, rear, and sides of the vehicle—to create a unified, bird's-eye perspective. This 'sky view' or 'top view' is generated by real-time stitching of the individual camera feeds, offering a significantly broader awareness than traditional backup or blind-spot monitoring systems. A key installation advantage highlighted is the method for mounting the side cameras. Instead of drilling into the car's body, the 2D Super View system replaces the existing puddle lamps (lights located in the fender area), ensuring no damage to the vehicle's exterior and a seamless aesthetic integration.
The Installation Process: Achieving a Factory-Like Finish

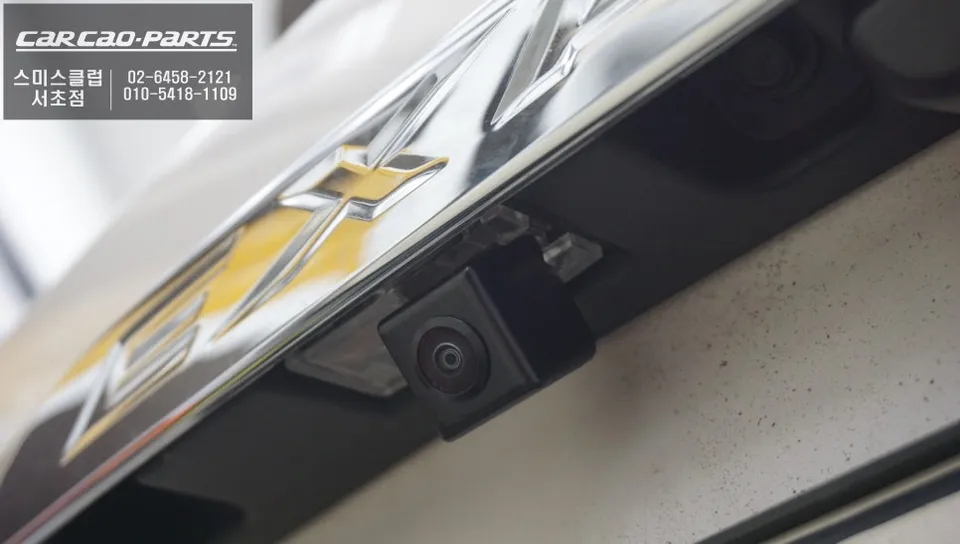

The rear camera is integrated into an LED license plate light assembly, presenting a clean, factory-integrated look rather than an aftermarket add-on. All four cameras boast SUPER HD resolution and Wide Dynamic Range (WDR) technology, ensuring clear visibility in various lighting conditions, from bright daylight to dimly lit nights. Furthermore, the system automatically records footage from all cameras while driving, serving as a valuable supplementary recording device alongside a dashcam in case of accidents.
Sky View: A New Perspective for Parking
The core benefit of the surround view system is the 'sky view' display. This synthesized image, resembling a drone's overhead shot, allows drivers to clearly see obstacles directly beneath the front and rear bumpers—areas typically hidden from view. This capability significantly reduces the risk of low-speed collisions and scratches during parking maneuvers. The installation on the Ford Explorer also preserves and enhances original functions. The system integrates with the Power Assist Steering (PAS) system, meaning the on-screen parking lines dynamically adjust as the steering wheel is turned, mimicking the behavior of factory-installed systems. It also synchronizes with the original ultrasonic parking sensors (PDC), providing both visual and audible alerts for nearby obstacles.
Image Quality: Choosing the Right Output
A critical consideration for Ford Explorer 5.5th generation owners is the method of video output. While many installations utilize the factory rear camera port for simplicity and a clean look, this can limit video bandwidth, resulting in lower image quality. For those prioritizing superior clarity, an upgrade to HDMI or AHD output is recommended, bypassing the limitations of the stock port to deliver a sharper, more detailed image.
Frequently Asked Questions
Q. How much does Surround View Camera cost for a Ford Explorer?
The specific cost for this 2D Super View Surround View System on a Ford Explorer was not detailed in Korean Won within the original content. Typical US installations can range from $800 to $2,500 depending on the system's features and complexity.
Q. How long does Surround View Camera last on a Ford Explorer?
High-quality surround view camera systems are designed for durability and can last for many years, often matching the lifespan of the vehicle's other electronic components. Regular cleaning of the camera lenses is recommended to maintain optimal performance.
Q. Is Surround View Camera worth it for a Ford Explorer?
A surround view camera system is highly beneficial for Ford Explorer owners who frequently navigate tight parking spaces or have concerns about blind spots. It significantly enhances parking safety and reduces the risk of accidental damage, offering excellent value for peace of mind.
Q. How is Surround View Camera done on a Ford Explorer?
Installation involves mounting four high-definition cameras (front, rear, sides) and integrating them with the vehicle's display. The process includes replacing puddle lamps with side cameras, using an integrated rear camera/license plate light, and connecting the system to display a synthesized 360° view, often with dynamic parking lines linked to steering.
Q. What is the best Surround View Camera option for a Ford Explorer?
For the best visual experience on a Ford Explorer 5.5th gen, consider systems offering HDMI or AHD output over standard factory port connections, as they provide superior Super HD resolution and WDR capabilities. The 2D Super View system with puddle lamp side camera integration offers a clean, damage-free installation.
