Honda CR-V 3D Surround View Camera Installation & Review
Honda CR-V 3D Surround View Camera installation enhances parking safety by providing a 360-degree bird's-eye view, eliminating blind spots.
Honda CR-V 3D Surround View Camera: See the Unseen
Blind spots around your vehicle are a common cause of accidents. Installing a 3D Surround View Camera system on your Honda CR-V transforms your driving experience by providing a real-time, 360-degree bird's-eye view. This system is invaluable for navigating tight spaces and parking, offering a clear perspective of obstacles that would otherwise be hidden.
Understanding the Surround View Camera System
The Surround View Camera system utilizes four wide-angle cameras—front, rear, and on both side mirrors—to capture comprehensive footage. These images are then stitched together to create a seamless top-down (bird's-eye) view on your display. This allows you to see low-lying objects, curbs, and other vehicles with exceptional clarity, especially during parking maneuvers. While many modern luxury vehicles include this as a standard feature, it's a significant upgrade for vehicles like the Honda CR-V, particularly beneficial for new drivers. It's important to note that the CR-V's system typically outputs in CVBS (standard definition) quality, which may differ from the high-definition interfaces found in some newer, high-end vehicles.
Installation Process: Precision and Integration

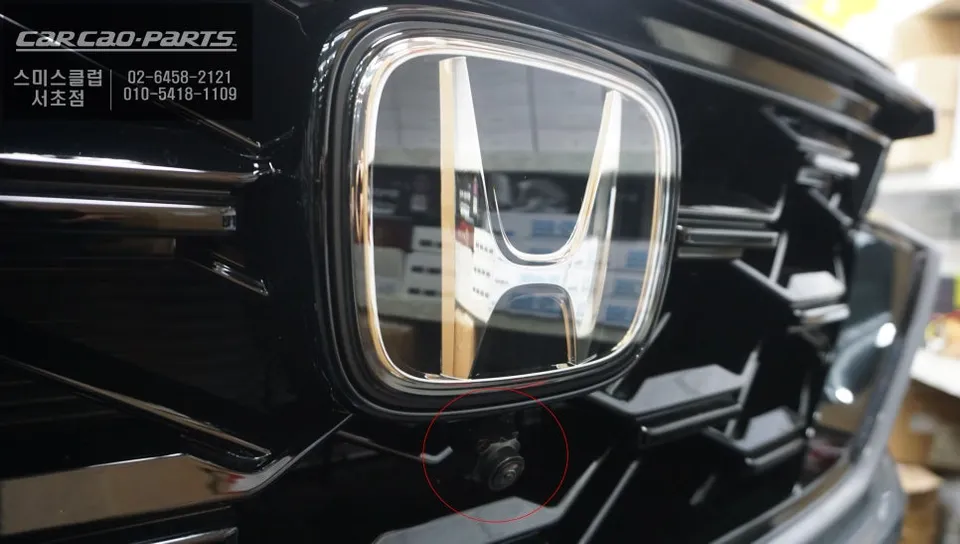

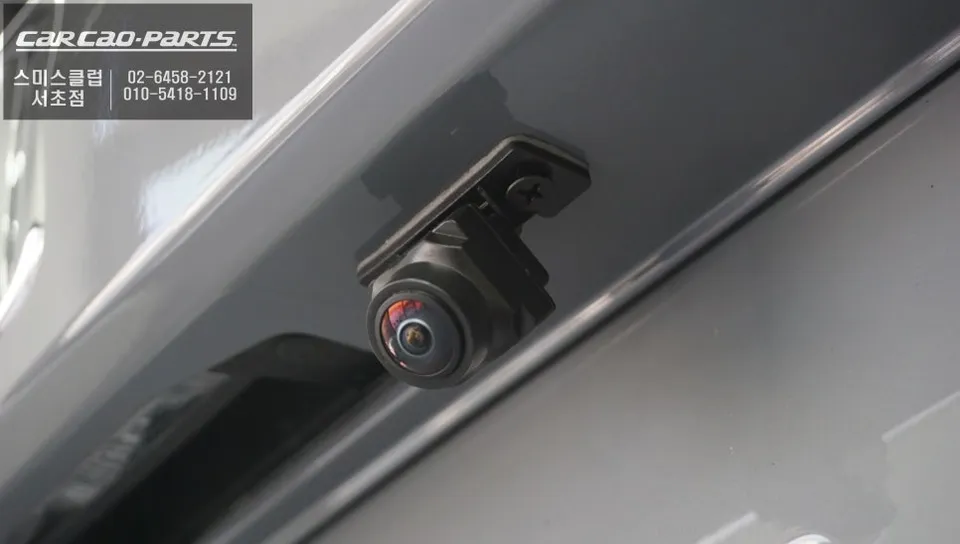

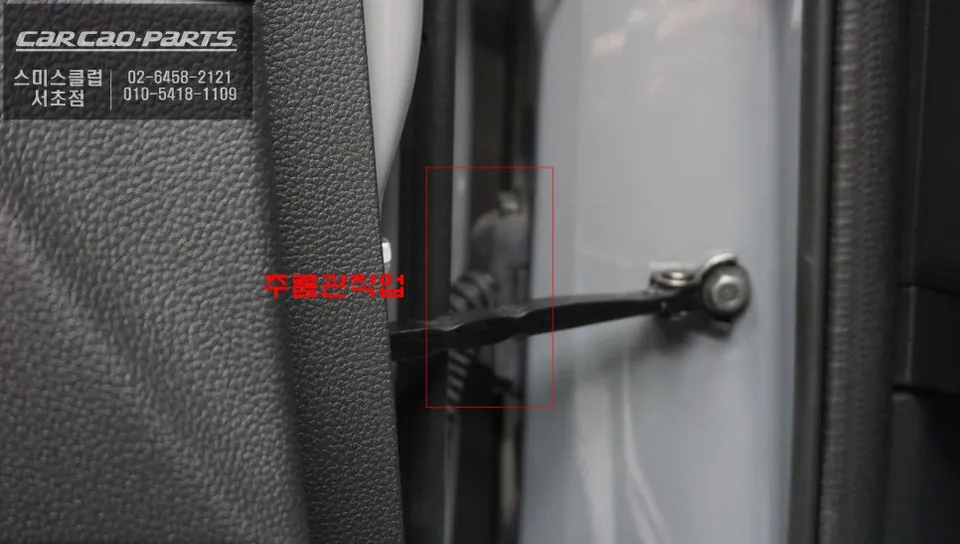

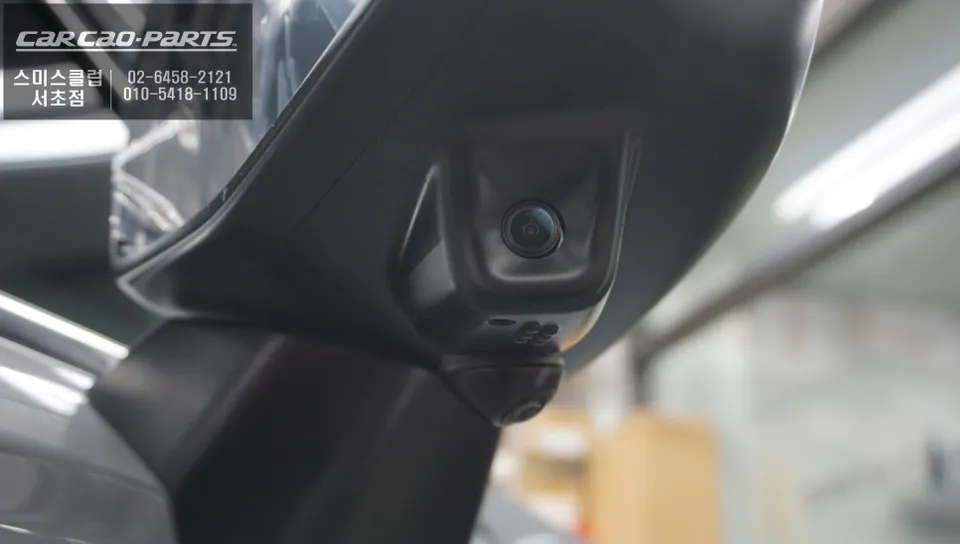

The installation involves carefully mounting four high-definition wide-angle cameras in precise locations. The front camera is integrated into the front bumper, the rear camera into the trunk lid, and the side cameras are discreetly installed behind the side mirrors. A critical aspect of the installation on the passenger side is avoiding interference with the factory rain-sensing camera. Professional installers must meticulously determine the correct drilling locations and ensure all wiring is neatly routed through the vehicle's original grommets for a clean, durable finish. The wiring from each camera is then meticulously organized, following the factory wiring harnesses and using protective tubing to prevent damage and maintain a factory-like appearance. This attention to detail ensures longevity and prevents issues like wire fraying or short circuits.
Smart Operation and Enhanced Safety Features
The Surround View Camera system operates intelligently. When you shift into reverse (R), the rear and bird's-eye view automatically activate. Shifting into drive (D) typically brings up the front and bird's-eye view. The system can be set to revert to the original display after a predetermined time. For challenging situations, such as navigating narrow alleys or parking garages, the system can be manually activated via a wireless remote or by quickly double-tapping the hazard light button. This allows for constant monitoring of all blind spots, significantly reducing the risk of minor collisions.
Bonus: 4-Channel Recording for Security
Beyond parking assistance, the four cameras effectively function as a 4-channel dashcam. This means that in the event of an accident, you'll have simultaneous recordings from the front, rear, and both sides of your vehicle, providing comprehensive evidence of the incident. To utilize this recording feature effectively, ensure you have a compatible memory card installed and understand how to access the recorded footage.
Frequently Asked Questions
Q. How much does a Surround View Camera cost for a Honda CR-V?
The installation cost for this specific 3D Surround View Camera system on a Honda CR-V was detailed in Korean Won within the original context. Typical US pricing for aftermarket surround view camera systems can range from $500 to $1500, depending on the brand and features.
Q. How long does a Surround View Camera last on a Honda CR-V?
With professional installation and proper care, a surround view camera system can last for many years, often matching the lifespan of the vehicle's other electronic components. Regular cleaning of the camera lenses and ensuring wiring remains protected will help maintain optimal performance.
Q. Is a Surround View Camera worth it for a Honda CR-V?
A surround view camera system is highly beneficial for Honda CR-V owners, especially new drivers or those frequently navigating tight parking spaces, as it significantly enhances safety and reduces the risk of minor accidents. The value lies in the peace of mind and improved situational awareness it provides.
Q. How is a Surround View Camera installed on a Honda CR-V?
Installation involves precisely mounting four wide-angle cameras: one on the front bumper, one on the trunk lid, and one behind each side mirror. 1. Cameras are carefully positioned and drilled into place. 2. Wiring is routed discreetly through the vehicle's interior, often following factory pathways. 3. All connections are secured, and the system is integrated with the vehicle's display for seamless operation.
Q. What is the best Surround View Camera option for a Honda CR-V?
While the original context details a specific aftermarket 3D Surround View system, the best option depends on your budget and desired features, such as recording capabilities. Look for systems that offer clear image stitching and reliable performance, ensuring professional installation for optimal results.
