Toyota Camry Surround View Camera installation eliminates blind spots, providing a 360° bird's-eye view for easier parking. Seamless integration with
Enhance Your Toyota Camry's Parking with a Surround View Camera
Parking can be one of the most stressful driving situations, especially in larger vehicles like the Toyota Camry. The inherent blind spots around the car make it easy to miss obstacles, leading to frequent accidents. This review details a comprehensive solution: the installation of a Surround View Camera system, transforming how you perceive your vehicle's surroundings. This upgrade provides a real-time, bird's-eye view, making parking and maneuvering in tight spaces significantly easier and safer.
Understanding the Surround View Camera System
A Surround View Camera system, also known as a 360-degree camera or bird's-eye view system, utilizes multiple cameras strategically placed around the vehicle – typically on the front, rear, and side mirrors. These cameras capture overlapping video feeds, which are then processed by a central unit to create a seamless, top-down (bird's-eye) view of the car and its immediate environment. Originally a premium feature on luxury vehicles, this technology is now accessible as an aftermarket upgrade for popular sedans like the Toyota Camry, offering a significant boost in situational awareness.
Why Install a Surround View Camera on a Toyota Camry?
The Toyota Camry, with its considerable length of approximately 4.9 meters, has substantial blind spots, particularly around the front and rear bumpers. Relying solely on traditional mirrors makes it challenging to accurately gauge distances to obstacles. A Surround View Camera system directly addresses this by providing a comprehensive visual of the car's perimeter. This is invaluable for navigating narrow alleyways, parking in complex underground garages, and detecting low-lying objects during reversing. For drivers who are less experienced or simply seeking added peace of mind, the system allows for a quick assessment of the surroundings before initiating maneuvers, reducing unnecessary steering adjustments and speeding up the parking process.
Installation Process and Functionality

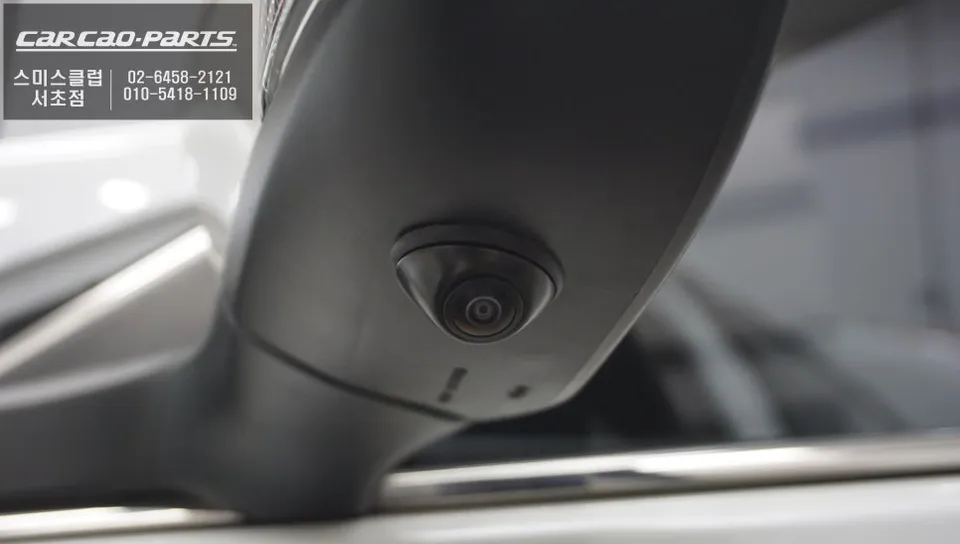

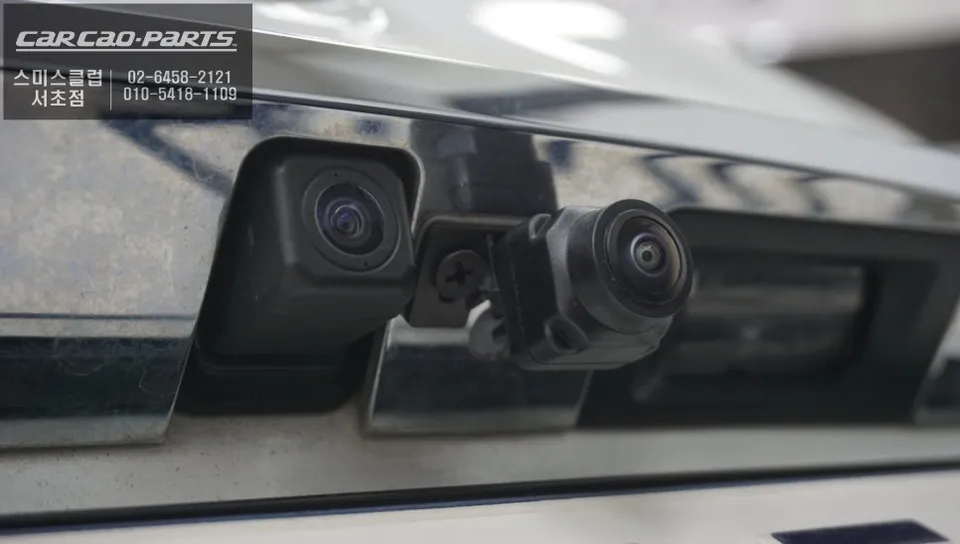

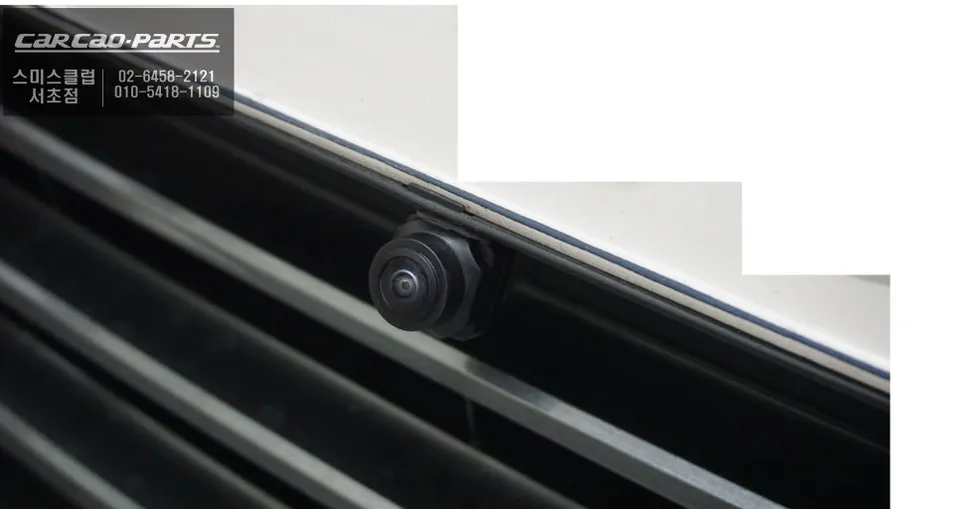

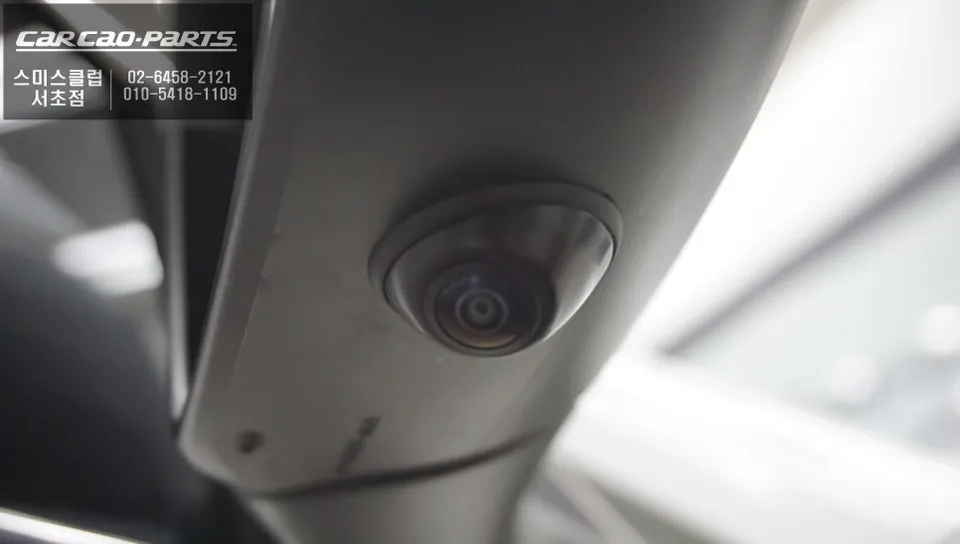

The installation involves mounting small, wide-angle (approximately 170-degree field of view) cameras in four key locations: the lower front bumper, the upper rear gate, and the underside of each side mirror. Once installed, the system integrates with the vehicle's existing infotainment display.
- Camera Mounting: Four discreet cameras are precisely installed on the exterior of the vehicle.
- Wiring and Integration: Cameras are wired to a control module that stitches the video feeds together.
- Display Activation: The system automatically displays the 360° top-down view on the car's monitor when the vehicle is put into reverse (R).
- Forward View: When in drive (D), the system can automatically switch to a front camera view, useful for navigating tight spaces.
- On-Demand Access: A wireless remote allows the driver to manually activate the Surround View display at any time, perfect for checking clearance in narrow passages.
While the cameras may support 720P output, compatibility with the Camry's original monitor might result in a CVBS (composite video) signal. Despite this, the clarity and brightness are sufficient for practical parking assistance. Importantly, all original vehicle functions remain intact, and the system seamlessly reverts to the standard display when not actively in use.
Advanced Features: Recording and Triggering
Some Surround View Camera systems offer additional functionalities, such as video recording capabilities, which can serve as a dashcam. The trigger function allows the system to automatically activate based on specific conditions, such as engaging the reverse gear or activating turn signals, ensuring the driver always has the relevant view at the right moment.
Frequently Asked Questions
Q. How much does Surround View Camera cost for a Toyota Camry?
The cost for this specific installation in Korean Won was detailed in the original article. Typical US pricing for aftermarket Surround View Camera systems for a Toyota Camry can range from $500 to $1500, depending on the brand and features.
Q. How long does Surround View Camera last on a Toyota Camry?
Surround View Camera systems are generally durable and can last for many years with proper installation. Regular cleaning of the camera lenses is recommended to maintain optimal performance and prevent image degradation.
Q. Is Surround View Camera worth it for a Toyota Camry?
A Surround View Camera system is highly beneficial for Toyota Camry owners who frequently navigate tight parking spaces or drive in congested areas. It significantly enhances safety and reduces the risk of minor collisions, offering excellent value for peace of mind.
Q. How is Surround View Camera done on a Toyota Camry?
Installation involves mounting four wide-angle cameras on the front bumper, rear gate, and side mirrors. These cameras feed into a control unit that stitches the images into a 360° top-down view, displayed on the car's original monitor when in reverse or manually activated.
Q. What is the best Surround View Camera option for a Toyota Camry?
The best option depends on budget and desired features, but look for systems offering clear image quality (even if outputting CVBS to an older monitor), reliable automatic switching, and an easy-to-use manual activation method via a remote. Integration with the factory display is a key advantage.
